Description
Brand - DODGE
Item Number - 023033 DODGE - P4B-E-308R

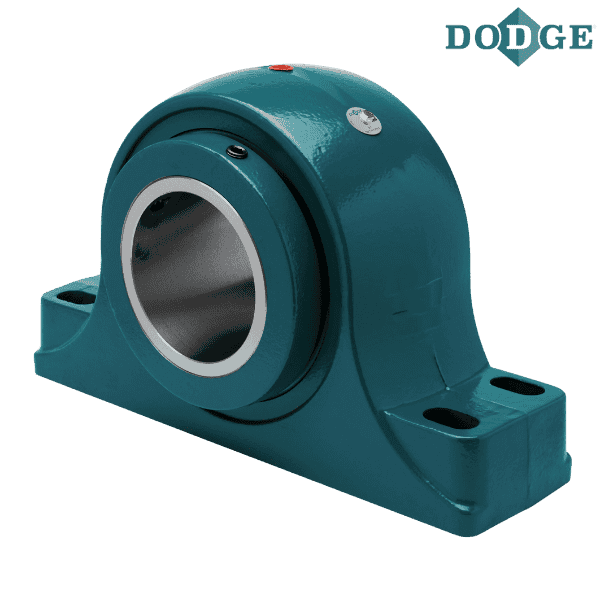

Category - 4-Bolt Base Type E-Xtra Pillow Block - Inch (Gray Iron)
Shaft Size (inch) - 3.5
Part Name - P4B-E-308R
Approximate Weight (lbs) - 45

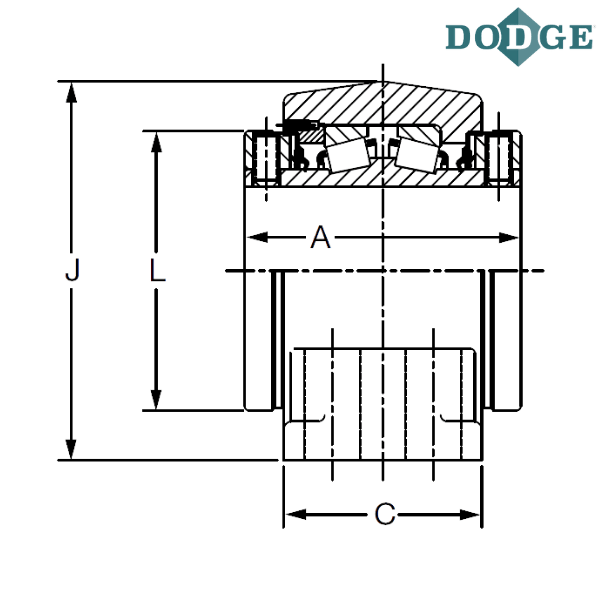

Length Through Bore (A) inch - 5

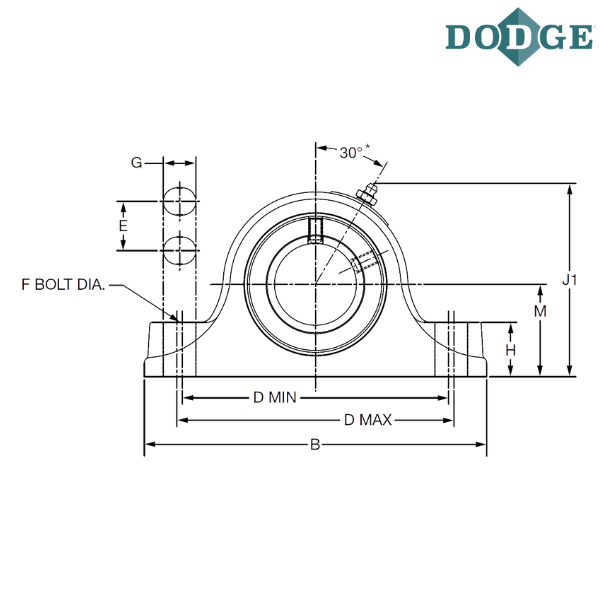

Overall Length (B) inch - 13.5
C (inch) - 4.5
Bolt to Bolt Minimum Distance (D min) inch - 10.75
Bolt to Bolt Maximum Distance (D max) inch - 11.25
Bolt Width (E) inch - 2.38
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.19
H (inch) - 2.25
Overall Height (J) inch - 7.5
J (inch) - 7.5
L (inch) - 5.5
Base to Center Height (M) inch - 3.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
E - Type E
R - “XTS” Triple Lip Seal
** Images are for representation purposes only
