Description
Brand - BECO
Item Number - UC 208 BHTS ZZ 350° Beco Plus
Category - Insert Bearing for Extreme Temperature
Bore Diameter (B) mm - 40
Outer Diameter (D) mm - 80
Dimension (A) mm - 19 ± 2
Dimension (A1) mm - 19
Dimension (A2) mm - 30.2
N - M8x1.00
Weight (kg) - 0.7
Limiting Speed (RPM) - 170
Static Load at 350°C (kN) - 12.6
Static Load at 20°C (kN) - 18.2

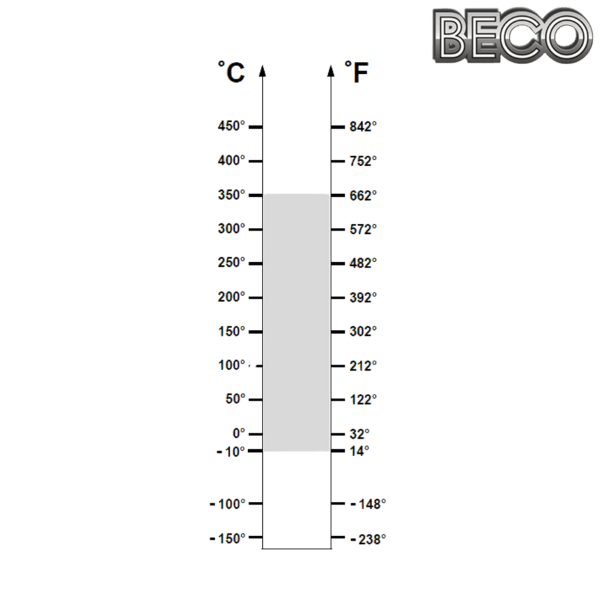

Operating Range - ‒10° / 350°C
Economic Operating Range - 250° / 350°C
---------------------------------------------------------
Bearing + Housing = Bearing Unit
---------------------------------------------------------
UC 208 BHTS ZZ 350° Beco Plus + PA 208 SS = UCPA 208 BHTS ZZ 350° Beco Plus
UC 208 BHTS ZZ 350° Beco Plus + F 208 SS = UCF 208 BHTS ZZ 350° Beco Plus
UC 208 BHTS ZZ 350° Beco Plus + FL 208 SS = UCFL 208 BHTS ZZ 350° Beco Plus
UC 208 BHTS ZZ 350° Beco Plus + P 208 SS = UCP 208 BHTS ZZ 350° Beco Plus
UC 208 BHTS ZZ 350° Beco Plus + T 208 SS = UCT 208 BHTS ZZ 350° Beco Plus
NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.
** Images are for representation purposes only
