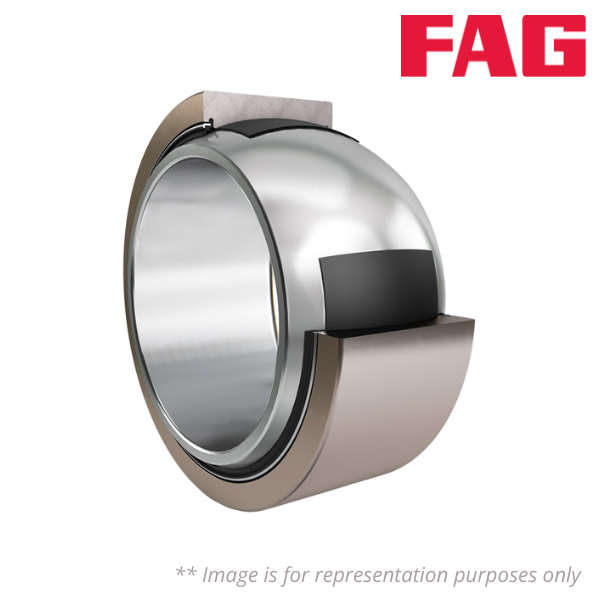

FAG offers several types of spherical plain bearings, each designed to meet specific application requirements. Here are some common types:
-
Radial Spherical Plain Bearings: These bearings can accommodate radial loads in any direction and, depending on the design, can also handle axial loads. They are suitable for applications where there is limited space or where misalignment needs to be accommodated.
-
Angular Contact Spherical Plain Bearings: Designed to accommodate primarily axial loads in one direction, these bearings can also accommodate some radial loads. They are suitable for applications where there is predominantly axial motion with limited radial movement.
-
Thrust Spherical Plain Bearings: These bearings are specifically designed to accommodate predominantly axial loads. They are suitable for applications where there is significant axial motion and limited radial movement.
-
Maintenance-Free Spherical Plain Bearings: These bearings are designed with self-lubricating materials or sealed designs to eliminate the need for maintenance. They are suitable for applications where frequent lubrication is impractical or where maintenance is difficult.
-
Steel-on-Steel Spherical Plain Bearings: In this type, both the inner and outer rings are made of steel, providing high load-carrying capacity and durability. They require regular lubrication to maintain performance.
-
Steel-on-Bronze Spherical Plain Bearings: These bearings have a steel inner ring and an outer ring lined with bronze material. They offer good load-carrying capacity and are suitable for moderate to heavy-duty applications.
-
Steel-on-PTFE Composite Spherical Plain Bearings: These bearings have a steel inner ring and an outer ring lined with PTFE (polytetrafluoroethylene) composite material. They offer low friction, maintenance-free operation, and are suitable for applications requiring high performance and durability.
-
Steel-on-PTFE Fabric Spherical Plain Bearings: Similar to the composite type, these bearings have a steel inner ring and an outer ring lined with PTFE fabric. They provide excellent wear resistance and are suitable for heavy-duty applications with high loads and moderate speeds.
These are some of the common types of FAG spherical plain bearings available, each offering unique features and benefits to suit different application requirements.
