Description
Brand - DODGE
Item Number - 004060 DODGE - P4B-BAR-115
Category - Sleeve Bearings - Rigid Babbitted Journal Bearings (Split Housing)
Shaft Size (inch) - 1.9375
Description - P4B-BAR-115
Weight (lbs) - 10.6

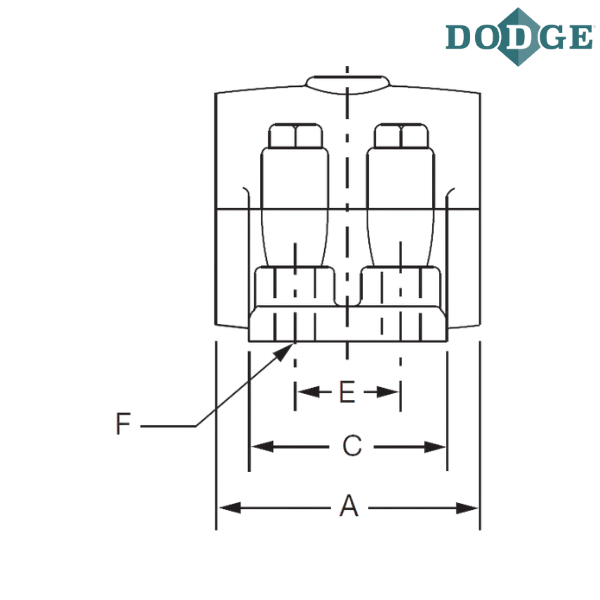

Length Through Bore (A) inch - 4
Overall Length (B) inch - 8.25
C (inch) - 3.5
Bolt to Bolt Minimum Distance (D min) inch - 6.375
Bolt to Bolt Maximum Distance (D max) inch - 6.625
E (inch) - 1.75
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.75
H (inch) - 0.875
Overall Height (J) inch - 3.5
Base to Center Height (M) inch - 1.75
Grease Cups (Pipe Tap) inch - 0.25
Grease Cups (Number Required) - 1
Grease Cups (Size) - 1
Notes :
P4B - Pillow Block, 4 Bolt Base
BAR - Babbitted Rigid
115 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
