Description
Brand - DODGE
Item Number - 005100 DODGE - P4B-BZR-515

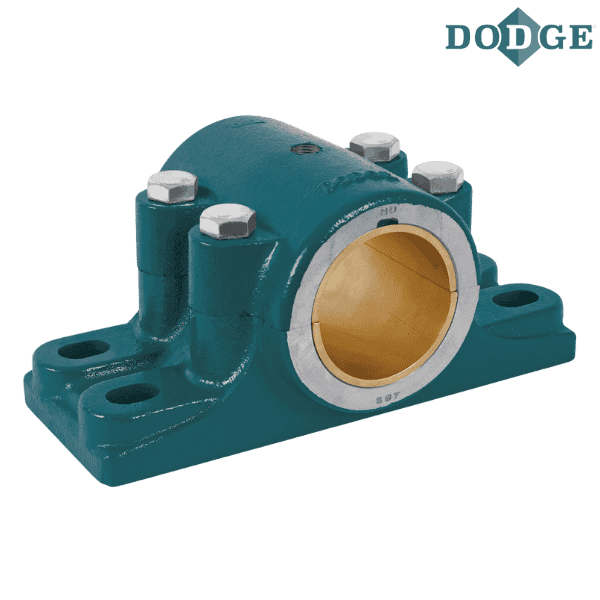

Category - Sleeve Bearings - Bronze-Bushed Split Journal Bearing
Shaft Size (inch) - 5.9375
Description - P4B-BZR-515
Weight (lbs) - 180

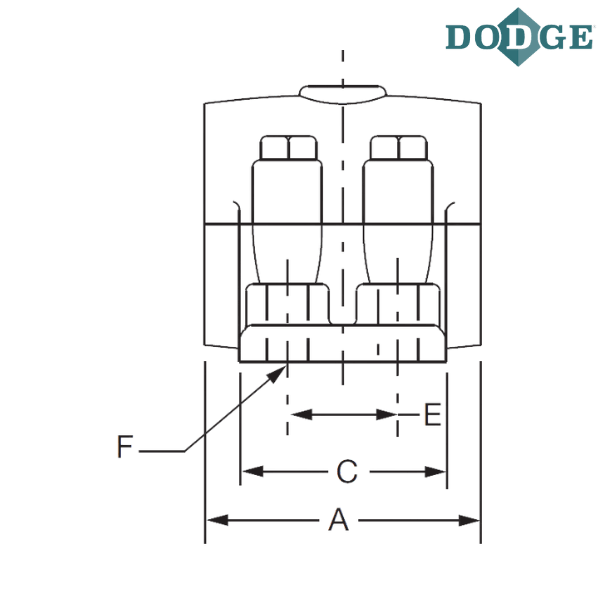

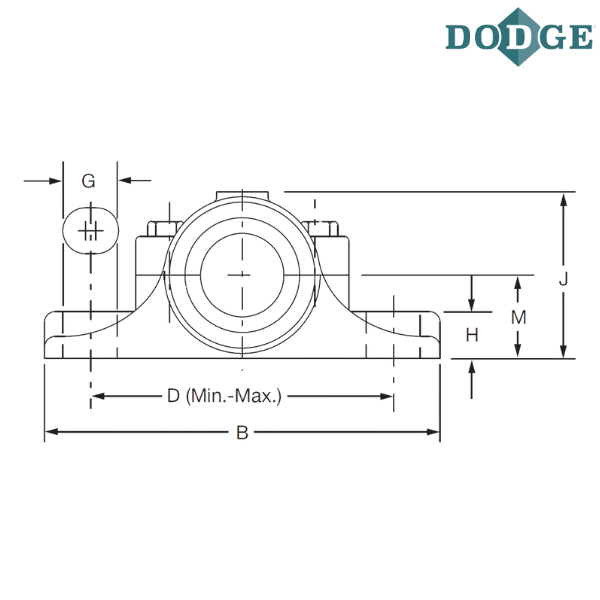

Length Through Bore (A) inch - 12
Overall Length (B) inch - 20.5
C (inch) - 8.5
Bolt to Bolt Minimum Distance (D min) inch - 15.875
Bolt to Bolt Maximum Distance (D max) inch - 17.125
E (inch) - 5
F-Bolt Diameter (inch) - 1.125
G (inch) - 1.875
H (inch) - 2.125
Overall Height (J) inch - 9.8125
Base to Center Height (M) inch - 5.5
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Number Required) - 2
Grease Cups (Size) - 3
Notes :
P2B - Pillow Block, 2 Bolt Base
BZR - Bronze Bushed Rigid
515 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
