Description
Brand - DODGE
Item Number - 035185 DODGE - CH4S-USDAF-068
Category - USDAF Adapter Mount Pillow Block (Closed Housing)
Possible Shaft Diameters (inch) - 12.4375, 12.5
Housing - 068
Closed Housing Description - CH4S-USDAF-068
Open Housing Item Number - 035183 DODGE - H4S-USDAF-068
Bearing Item Number - 421282 DODGE - 23068K
Dynamic Capacity (C) lbs - 530000
Maximum RPM LER (Grease) - 560
SNP Item Numbers - 047632 DODGE - H3064-SNP-1207, 047635 DODGE - H3068-SNP-1208
TRIPLE- TECT Seal Item Numbers - 047948 DODGE - 102TT1207, 047949 DODGE - 102TT1208
# LER Seal Item Number - *046498 DODGE - 102ER1207, *046499 DODGE - 102ER1208
Auxiliary (Taconite) Item Number - 046567 DODGE - 102AUX1207, 046568 DODGE - 102AUX1208
A1 (inch) - 15.85
Overall Length (B) inch - 39
C (inch) - 15.25
Bolt to Bolt Minimum Distance (D min) inch - 32
Bolt to Bolt Maximum Distance (D max) inch - 34
E (inch) - 10
F-Bolt Diameter (inch) - 1.875
H (inch) - 4.19
Overall Height (J) inch - 24
K (inch) - 7.47
Base to Center Height (M) inch - 12
P (inch) - 26.38
Q (inch) ** - 4.81
S (inch) *** - 0.19
Total Expansion (inch) - 0.375
Notes :
CH4S - 4 Bolt Base Pillow Block, Cast Iron, One End Closed
USDAF - UNIFIED SDAF Cast Iron Pillow Block Housing (Inch Dimensions)
# LER seals are made from Aluminum unless otherwise noted by the * symbol.
If an * appears by the part number, the LER seal is manufactured from Steel.

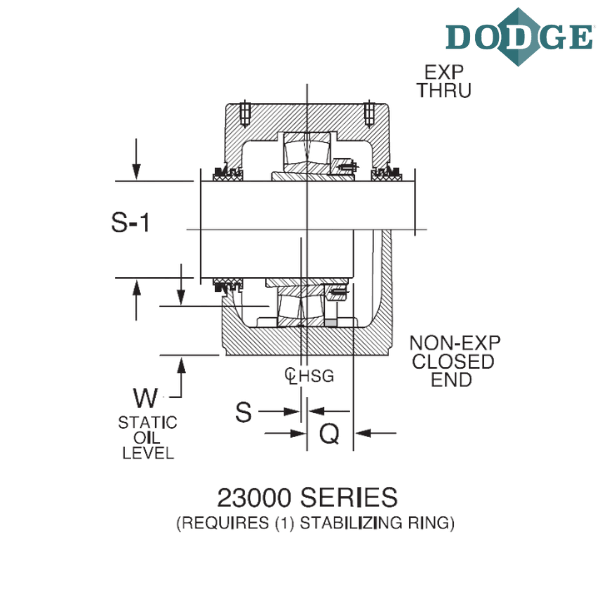

** Distance Shaft Should Extend Beyond Housing Centerline If Pillow Block Is Closed End Style
*** Non-expansion Bearing Offset From Centerline. For Expansion Bearing S = O
**** Images are for representation purposes only
