Description
Brand - DODGE
Item Number - 037428 DODGE - CH4S-USDAF-064L
Category - USDAF Adapter Mount Pillow Block (Closed Housing)
Possible Shaft Diameters (inch) - 11.9375, 12.0
Housing - 064L
Closed Housing Description - CH4S-USDAF-064L
Open Housing Item Number - 422529 DODGE - H4S-USDAF-064L
Bearing Item Number - 422531 DODGE - 23064K
Dynamic Capacity (C) lbs - 455000
Maximum RPM LER (Grease) - 600
SNP Item Numbers - 043584 DODGE - H3064L-SNP-1115, 422525 DODGE - H3064L-SNP-1200
TRIPLE- TECT Seal Item Numbers - 047946 DODGE - 100TT1115, 047947 DODGE - 100TT1200
# LER Seal Item Number - *042040 DODGE - 1OOER1115, *422535 DODGE - 100ER1200
Auxiliary (Taconite) Item Number - 045790 DODGE - 100AUX1115, 045793 DODGE - 100AUX1200
A1 (inch) - 16.36
Overall Length (B) inch - 38.25
C (inch) - 14.75
Bolt to Bolt Minimum Distance (D min) inch - 31.63
Bolt to Bolt Maximum Distance (D max) inch - 34.63
E (inch) - 9
F-Bolt Diameter (inch) - 1.625
H (inch) - 3.38
Overall Height (J) inch - 23.44
K (inch) - 7.72
Base to Center Height (M) inch - 12
P (inch) - 26.5
Q (inch) ** - 4.45
S (inch) *** - 0.19
Total Expansion (inch) - 0.375
Notes :
CH4S - 4 Bolt Base Pillow Block, Cast Iron, One End Closed
USDAF - UNIFIED SDAF Cast Iron Pillow Block Housing (Inch Dimensions)
# LER seals are made from Aluminum unless otherwise noted by the * symbol.
If an * appears by the part number, the LER seal is manufactured from Steel.

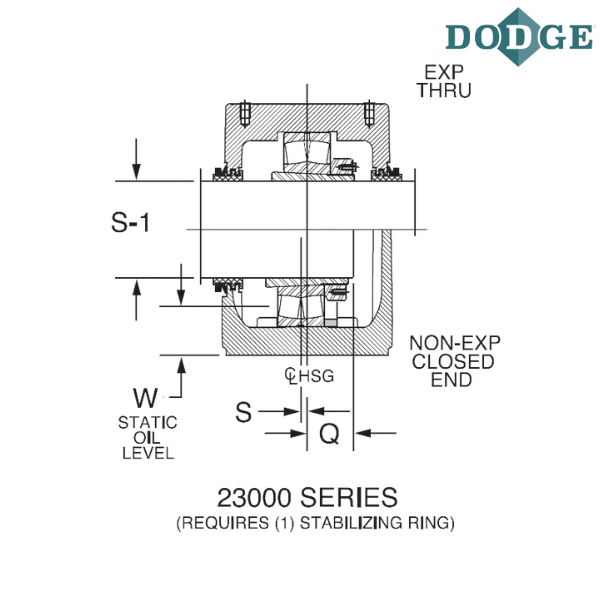

** Distance Shaft Should Extend Beyond Housing Centerline If Pillow Block Is Closed End Style
*** Non-expansion Bearing Offset From Centerline. For Expansion Bearing S = O
**** Images are for representation purposes only
