Description
Brand - DODGE
Item Number - 037429 DODGE - CH4S-USDAF-072
Category - USDAF Adapter Mount Pillow Block (Closed Housing)
Possible Shaft Diameters (inch) - 12.9375, 13.0
Housing - 072
Closed Housing Description - CH4S-USDAF-072
Open Housing Item Number - 044164 DODGE - H4S-USDAF-072
Bearing Item Number - 422036 DODGE - 23072K
Dynamic Capacity (C) lbs - 550000
Maximum RPM LER (Grease) - 530
SNP Item Numbers - 043635 DODGE - H3072-SNP-1215, 043636 DODGE - H3072-SNP-1300
TRIPLE- TECT Seal Item Numbers - 047950 DODGE - 104TT1215, 047951 DODGE - 104TT1300
# LER Seal Item Number - *042090 DODGE - 104ER1215, *042091 DODGE - 072ER1300
Auxiliary (Taconite) Item Number - 045796 DODGE - 102AUX1215, 045799 DODGE - 104AUX1300
A1 (inch) - 16.98
Overall Length (B) inch - 41.75
C (inch) - 15.75
Bolt to Bolt Minimum Distance (D min) inch - 35
Bolt to Bolt Maximum Distance (D max) inch - 36.5
E (inch) - 10.25
F-Bolt Diameter (inch) - 1.875
H (inch) - 4.5
Overall Height (J) inch - 25.75
K (inch) - 8.16
Base to Center Height (M) inch - 12.81
P (inch) - 29.13

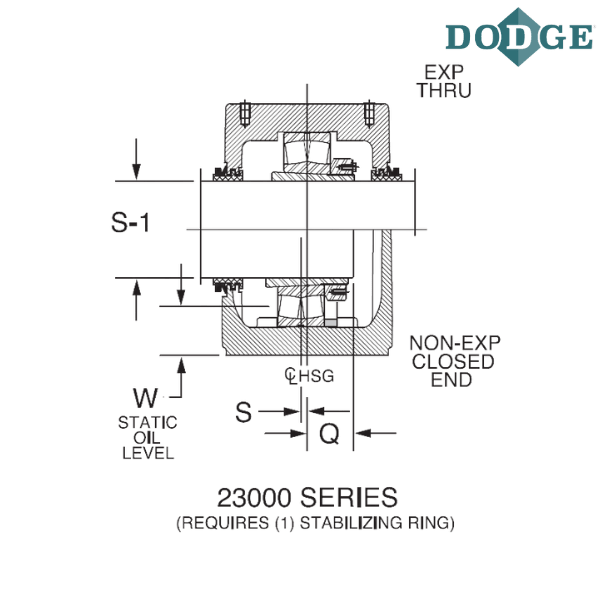

Q (inch) ** - 4.81
S (inch) *** - 0.19
Total Expansion (inch) - 0.375
Notes :
CH4S - 4 Bolt Base Pillow Block, Cast Iron, One End Closed
USDAF - UNIFIED SDAF Cast Iron Pillow Block Housing (Inch Dimensions)
# LER seals are made from Aluminum unless otherwise noted by the * symbol.
If an * appears by the part number, the LER seal is manufactured from Steel.
** Distance Shaft Should Extend Beyond Housing Centerline If Pillow Block Is Closed End Style
*** Non-expansion Bearing Offset From Centerline. For Expansion Bearing S = O
**** Images are for representation purposes only
