Brand - DODGE
Item Number - 037452 DODGE - CH4S-USDAF-3268
Category - USDAF Adapter Mount Pillow Block (Closed Housing)
Possible Shaft Diameters (inch) - 12.4375, 12.5
Housing - 3268
Closed Housing Description - CH4S-USDAF-3268
Open Housing Item Number - 037451 DODGE - H4S-USDAF-3268
Bearing Item Number - 421293 DODGE - 23268K
Dynamic Capacity (C) lbs - 1000000
Maximum RPM LER (Grease) - 480
SNP Item Numbers - 047681 DODGE - H328-SNP-1207, 047682 DODGE - H3268-SNP-1208
TRIPLE- TECT Seal Item Numbers - 047948 DODGE - 102TT1207, 047949 DODGE - 102TT1208
# LER Seal Item Number - *046498 DODGE - 102ER1207, *046499 DODGE - 102ER1208
Auxiliary (Taconite) Item Number - 046567 DODGE - 102AUX1207, 046568 DODGE - 102AUX1208
A1 (inch) - 18.38
Overall Length (B) inch - 46
C (inch) - 17.13
Bolt to Bolt Minimum Distance (D min) inch - 39.25
Bolt to Bolt Maximum Distance (D max) inch - 40.75
E (inch) - 11
F-Bolt Diameter (inch) - 2
H (inch) - 5.25
Overall Height (J) inch - 29
K (inch) - 8.75
Base to Center Height (M) inch - 14.5
P (inch) - 33.17
Q (inch) ** - 6.66
S (inch) *** - 0
Total Expansion (inch) - 0.5
Notes :
CH4S - 4 Bolt Base Pillow Block, Cast Iron, One End Closed
USDAF - UNIFIED SDAF Cast Iron Pillow Block Housing (Inch Dimensions)
# LER seals are made from Aluminum unless otherwise noted by the * symbol.
If an * appears by the part number, the LER seal is manufactured from Steel.
** Distance Shaft Should Extend Beyond Housing Centerline If Pillow Block Is Closed End Style
*** Non-expansion Bearing Offset From Centerline. For Expansion Bearing S = O

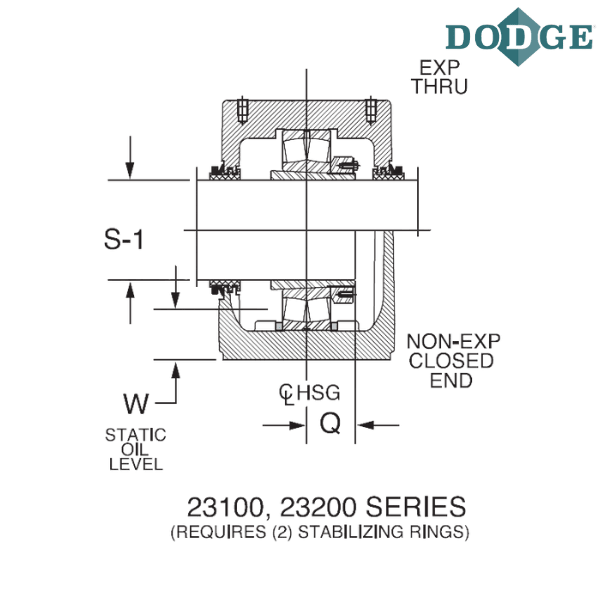

**** Images are for representation purposes only
