Description
Brand - DODGE
Item Number - 037462 DODGE - CH4S-USDAF-3152
Category - USDAF Adapter Mount Pillow Block (Closed Housing)
Possible Shaft Diameters (inch) - 9.4375, 9.5
Housing - 3152
Closed Housing Description - CH4S-USDAF-3152
Open Housing Item Number - 037461 DODGE - H4S-USDAF-3152
Bearing Item Number - 421294 DODGE - 23152K
Dynamic Capacity (C) lbs - 490000
Maximum RPM LER (Grease) - 670
SNP Item Numbers - 047630 DODGE - H3152-SNP-907, 047631 DODGE - H3152-SNP-908
TRIPLE- TECT Seal Item Numbers - 043538 DODGE - 84TT908, 422545 DODGE - 84TT908
# LER Seal Item Number - *042510 DODGE - 84LER907, *422594 DODGE - 84LER908
Auxiliary (Taconite) Item Number - 040900 DODGE - 84AUX907, 040901 DODGE - 84AUX908
A1 (inch) - 14.28
Overall Length (B) inch - 35
C (inch) - 13.75
Bolt to Bolt Minimum Distance (D min) inch - 29
Bolt to Bolt Maximum Distance (D max) inch - 30.5
E (inch) - 8.75
F-Bolt Diameter (inch) - 1.625
H (inch) - 3.75
Overall Height (J) inch - 20.88
K (inch) - 6.83
Base to Center Height (M) inch - 10.25
P (inch) - 23.94

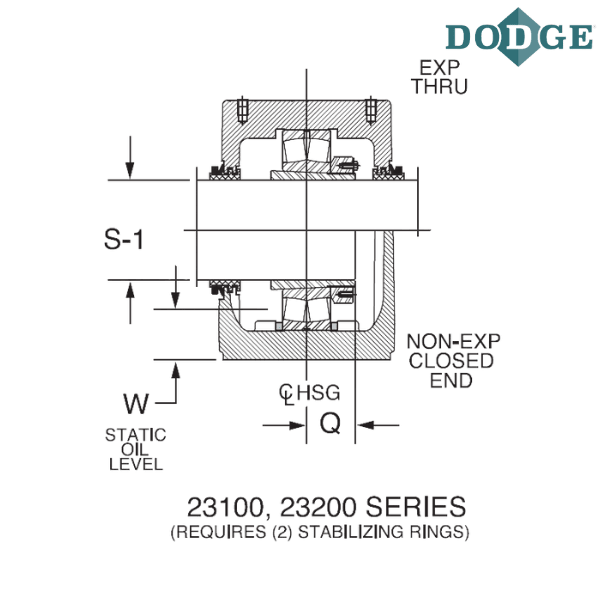

Q (inch) ** - 4.63
S (inch) *** - 0
Total Expansion (inch) - 0.375
Notes :
CH4S - 4 Bolt Base Pillow Block, Cast Iron, One End Closed
USDAF - UNIFIED SDAF Cast Iron Pillow Block Housing (Inch Dimensions)
# LER seals are made from Aluminum unless otherwise noted by the * symbol.
If an * appears by the part number, the LER seal is manufactured from Steel.
** Distance Shaft Should Extend Beyond Housing Centerline If Pillow Block Is Closed End Style
*** Non-expansion Bearing Offset From Centerline. For Expansion Bearing S = O
**** Images are for representation purposes only
