Description
Brand - DODGE
Item Number - 037465 DODGE - CH4S-USDAF-3248
Category - USDAF Adapter Mount Pillow Block (Closed Housing)
Possible Shaft Diameters (inch) - 8.9375, 9.0
Housing - 3248
Closed Housing Description - CH4S-USDAF-3248
Open Housing Item Number - 037464 DODGE - H4S-USDAF-3248
Bearing Item Number - 422511 DODGE - 23248K
Dynamic Capacity (C) lbs - 560000
Maximum RPM LER (Grease) - 700
SNP Item Numbers - 047628 DODGE - H3248-SNP-815, 047629 DODGE - H3248-SNP-900
TRIPLE- TECT Seal Item Numbers - 043571 DODGE - 90TT815, 043572 DODGE - 90TT900
# LER Seal Item Number - 042544 DODGE - 90LER815, *042545 DODGE - 90LER900
Auxiliary (Taconite) Item Number - 040899 DODGE - 90AUX815, 040995 DODGE - 90AUX900
A1 (inch) - 14.28
Overall Length (B) inch - 35
C (inch) - 13.75
Bolt to Bolt Minimum Distance (D min) inch - 29
Bolt to Bolt Maximum Distance (D max) inch - 30.5
E (inch) - 8.75
F-Bolt Diameter (inch) - 1.625
H (inch) - 3.75
Overall Height (J) inch - 20.88
K (inch) - 6.83
Base to Center Height (M) inch - 10.25
P (inch) - 23.94
Q (inch) ** - 4.88
S (inch) *** - 0
Total Expansion (inch) - 0.375
Notes :
CH4S - 4 Bolt Base Pillow Block, Cast Iron, One End Closed
USDAF - UNIFIED SDAF Cast Iron Pillow Block Housing (Inch Dimensions)
# LER seals are made from Aluminum unless otherwise noted by the * symbol.
If an * appears by the part number, the LER seal is manufactured from Steel.

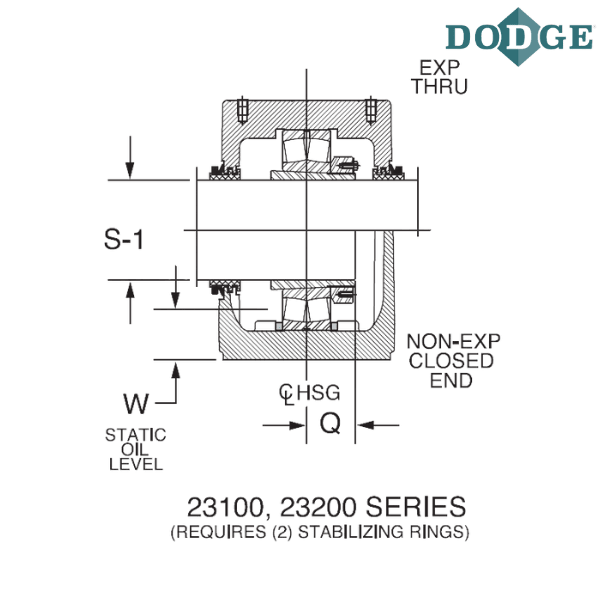

** Distance Shaft Should Extend Beyond Housing Centerline If Pillow Block Is Closed End Style
*** Non-expansion Bearing Offset From Centerline. For Expansion Bearing S = O
**** Images are for representation purposes only
