Description
Brand - McMASTER-CARR
Item Number - 6321K75 McMASTER-CARR

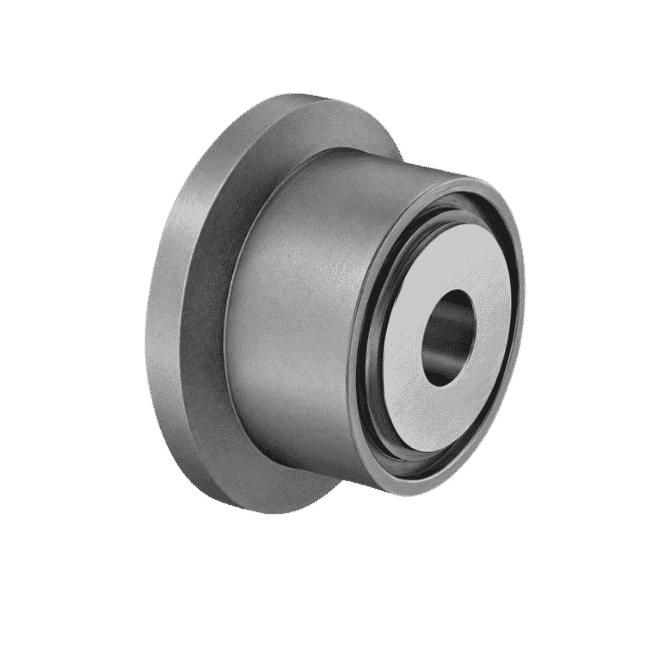

Category - Flanged Shaft-Mount Track Rollers (Steel Flat Rollers with Seal)
Imperial :

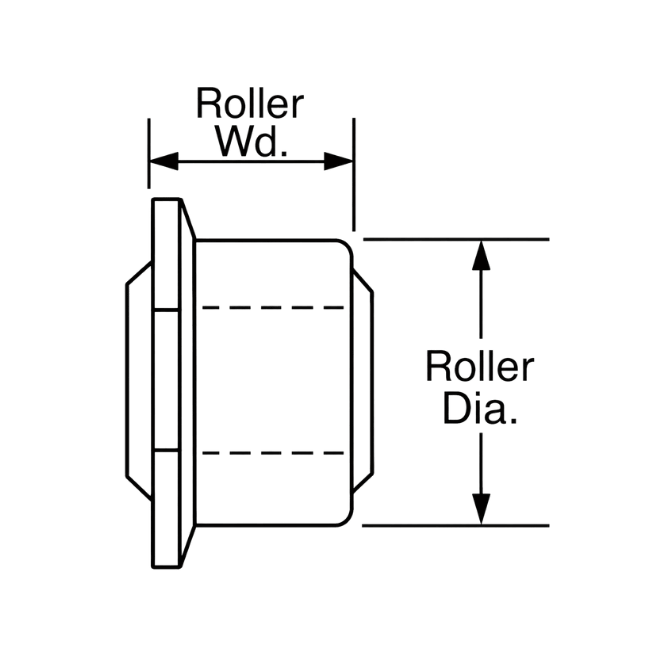

Roller Diameter (inch) - 1.25
Roller Width (inch) - 0.75
For Shaft Diameter (inch) - 0.375
Overall Width (inch) - 0.8125
Shoulder Diameter (inch) - 0.625
Shoulder Length (inch) - 0.03125
Outer Diameter of Flange (inch) - 1.5625
Thickness of Flange (inch) - 0.25
Maximum Speed (rpm) - 19000
Radial Static Load Capacity (lbs) - 660
Static Thrust Load Capacity (lbs) - 170
Maximum Temperature (°F) - 225°
Inside Bearing Type - Tapered Roller Bearing
Metric :
Roller Diameter (mm) - 31.75
Roller Width (mm) - 19.05
For Shaft Diameter (mm) - 9.525
Overall Width (mm) - 20.6375
Shoulder Diameter (mm) - 15.875
Shoulder Length (mm) - 0.79375
Outer Diameter of Flange (mm) - 39.6875
Thickness of Flange (mm) - 6.35
** Images are for representation purposes only
