Description
Brand - NADELLA
Item Number - FPL 310 NADELLA

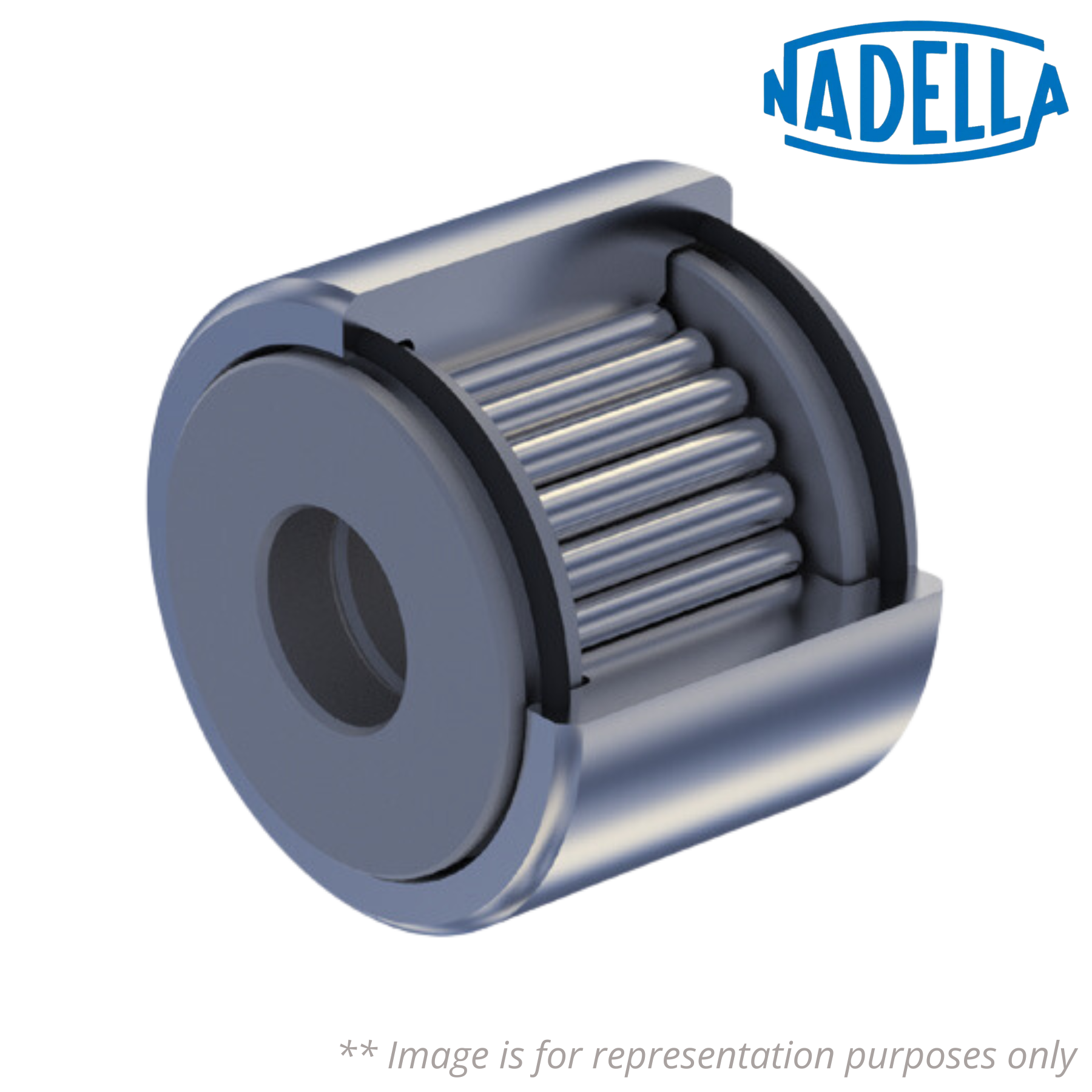

Category - Small Cam Rollers Without Stud With Cylindrical Outer Ring
Also Known As - FPL310

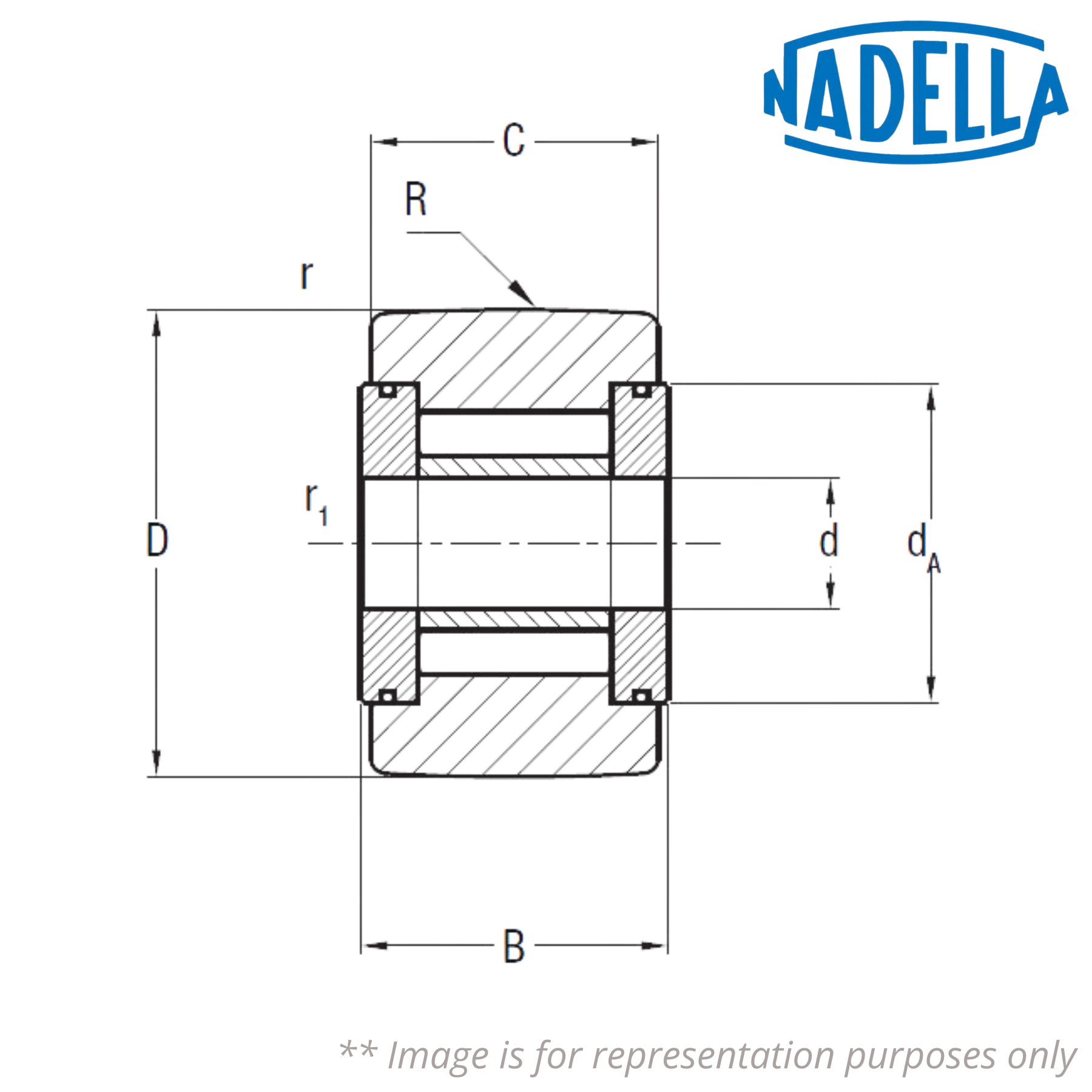

Outer Diameter (D) mm - 10
Diameter of the Pivot to Insert in the Recommended Hole (d) mm - 3
B (mm) - 8.7
C (mm) - 8
dA (mm) - 8.5
r (mm) - 0.2
r1 (mm) - 0.15
Load Coefficient (Cw) N - 2200
Dynamic Load Coefficient (Fr) N - 2200
Static Load Coefficient (For) N - 2200
Speed Limit with Grease (min-1) - 8200
Weight (kg) - 0.004
FPL - Outer Cylindrical Ring
