Description
Brand - NADELLA
Item Number - FPL 414 NADELLA
Category - Small Cam Rollers Without Stud With Cylindrical Outer Ring
Also Known As - FPL414

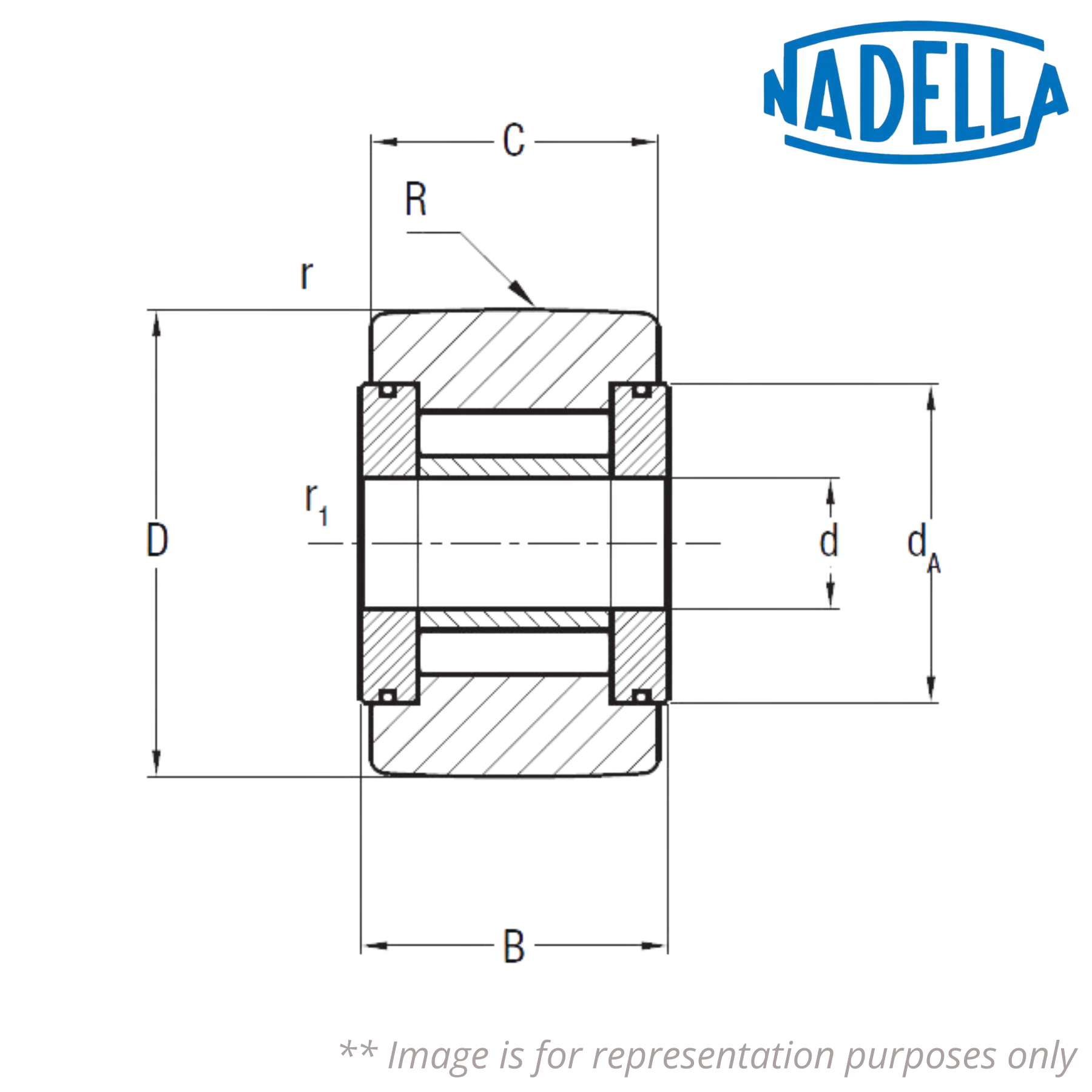

Outer Diameter (D) mm - 14
Diameter of the Pivot to Insert in the Recommended Hole (d) mm - 4
B (mm) - 10.2
C (mm) - 9
dA (mm) - 11.8
r (mm) - 0.3
r1 (mm) - 0.15
Load Coefficient (Cw) N - 3300
Dynamic Load Coefficient (Fr) N - 3900
Static Load Coefficient (For) N - 3900
Speed Limit with Grease (min-1) - 6800
Weight (kg) - 0.01
FPL - Outer Cylindrical Ring
