RNA11015 B6 NADELLA

Brand - NADELLA
Item Number - RNA11015 B6 NADELLA
Category - Full Complement Needle Roller Bearing
Also Known As - RNA11015B6

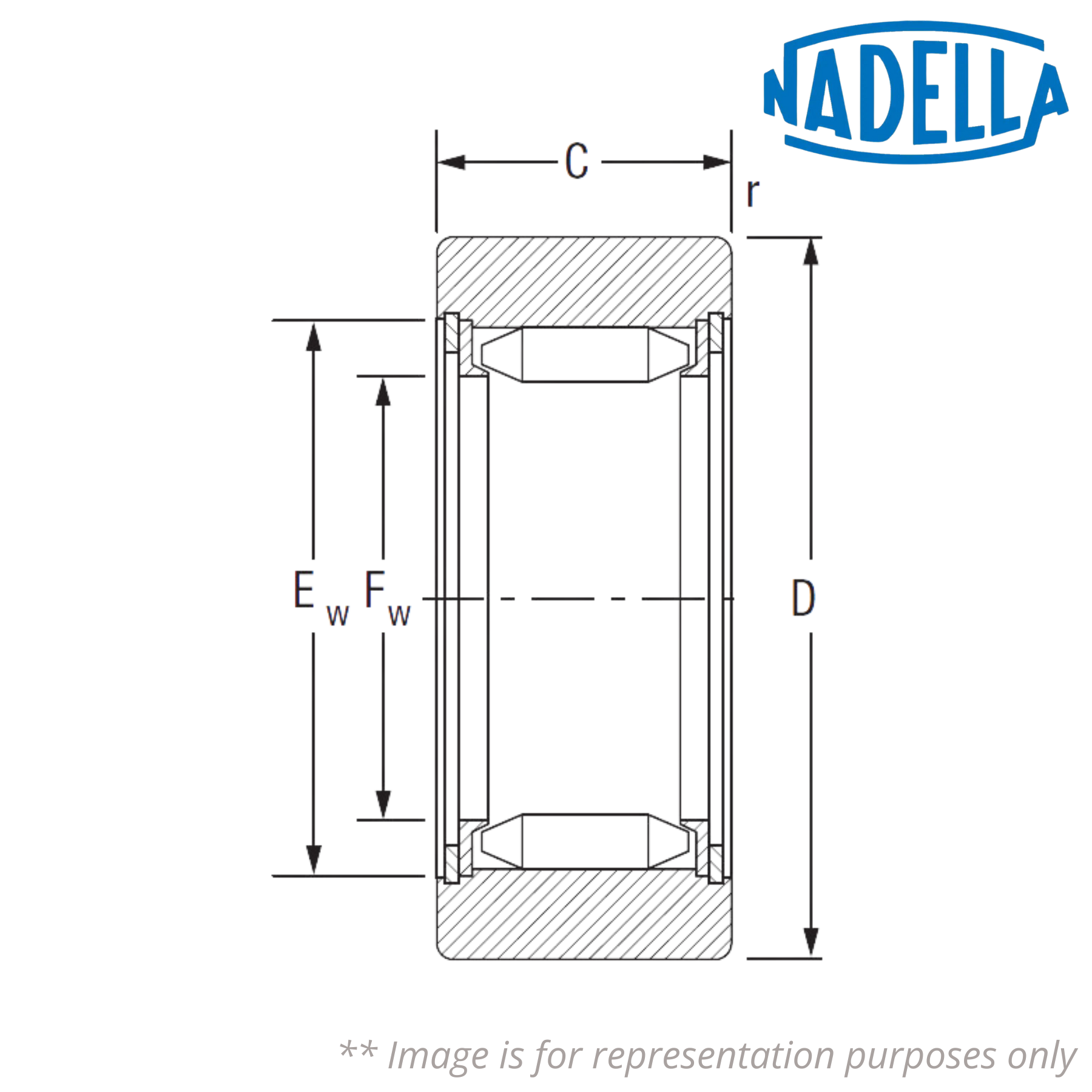

Principal Dimensions & Load Ratings (Metric) :
∅ Outer Diameter (D) - 35 mm
Inner Diameter (Fw *) - 20.8 mm
Outer Diameter (D) - 35 (h7) mm
Width (C) - 15 mm
Dimension (Ew) - 25.8 mm
Minimum Chamfer Dimension (r) - 0.65 mm
Weight - 0.062 kg
Load coefficients (Cw *) - 10800 N
Load coefficients (Din Fr *) - 9100 N
Load coefficients (Stat. For *) - 13400 N
Speed Limit with Greasing - 3650 rpm

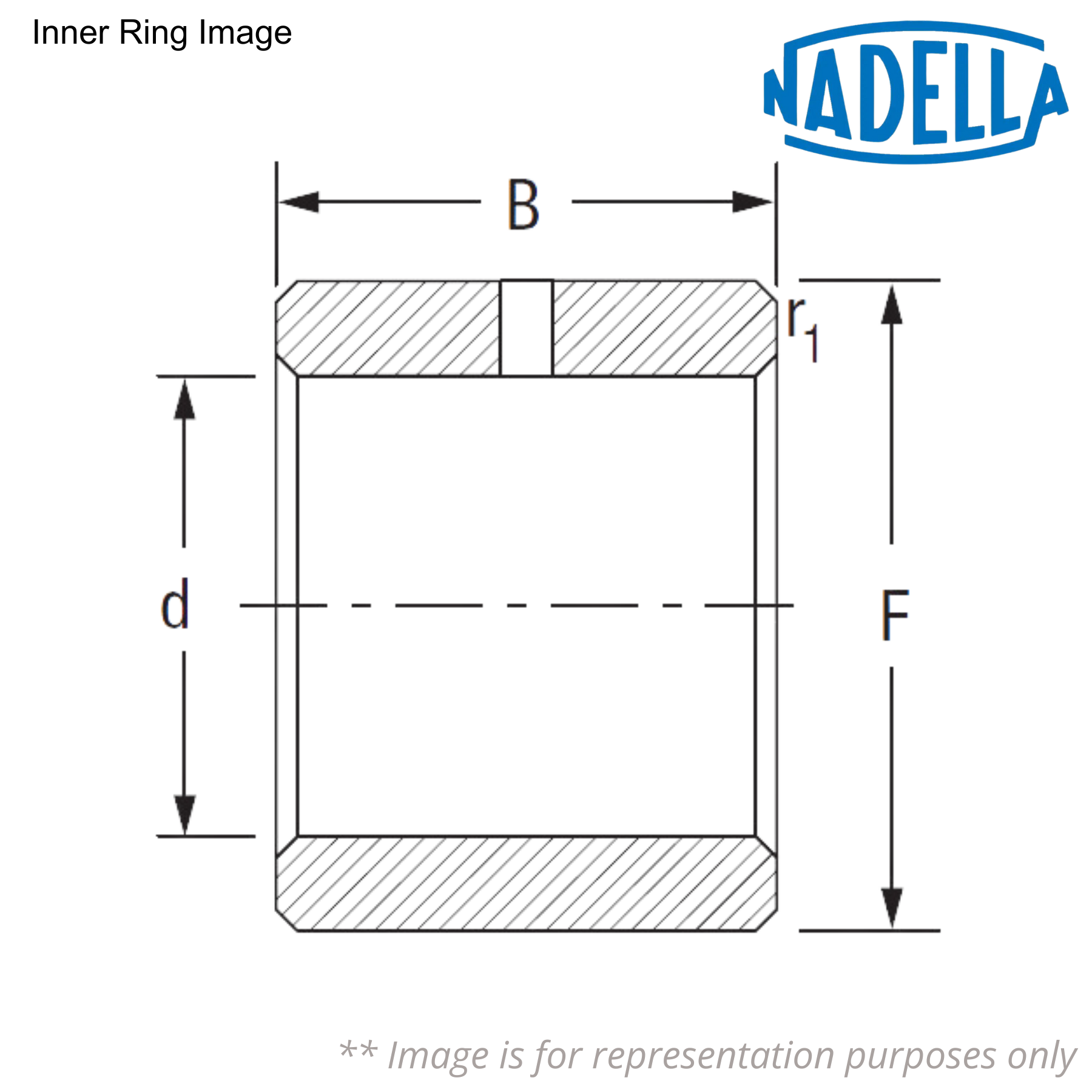

Dimensions of Compatible Inner Ring :
Part Number of Compatible Inner Ring - BIC 1015
∅ Shaft Diameter - 15 mm
Inner Diameter (d) - 15 mm
Outer Diameter (F) - 20.8 mm
Width (B) - 15 (0 to -0.10) mm
Minimum Chamfer Dimension (r1) - 0.65 mm
Weight - 0.018 kg
For Cam Follower Type - 11015

Description of Suffixes and Prefixes :
RNA - Full complement needle bearing without inner ring
B6 - Convex Outer Diameter For RNA 11 000 Series Cam Followers

Other Salient points to be noted :
* Recommended tolerance per Fw diameter of the pivot without the use of inner ring: h5

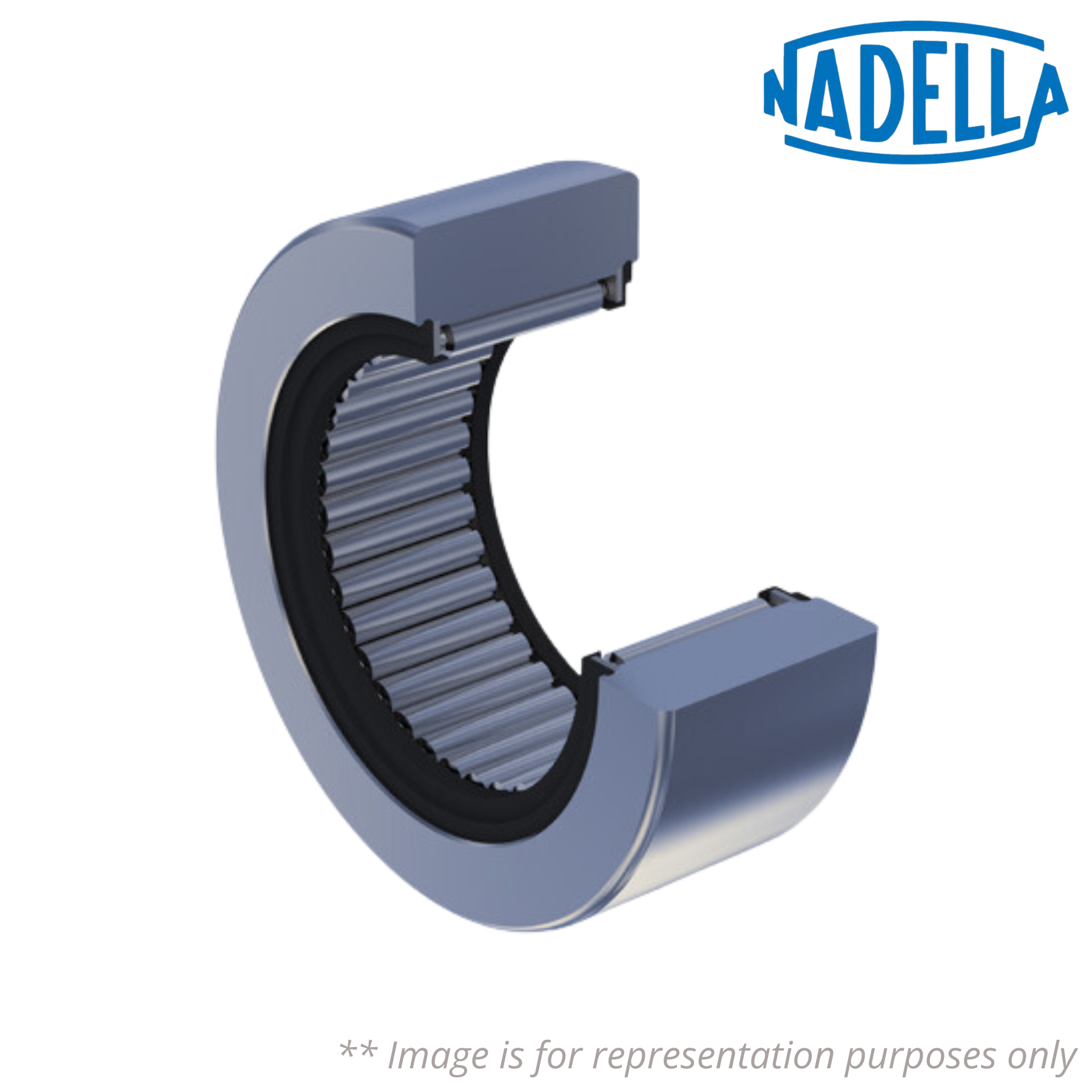

♦ ♦ Images are for representation purposes only
