RNA11035 B6 NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - RNA11035 B6 NADELLA
Category - Full Complement Needle Rollers without Inner Ring
Also Known As - RNA11035B6

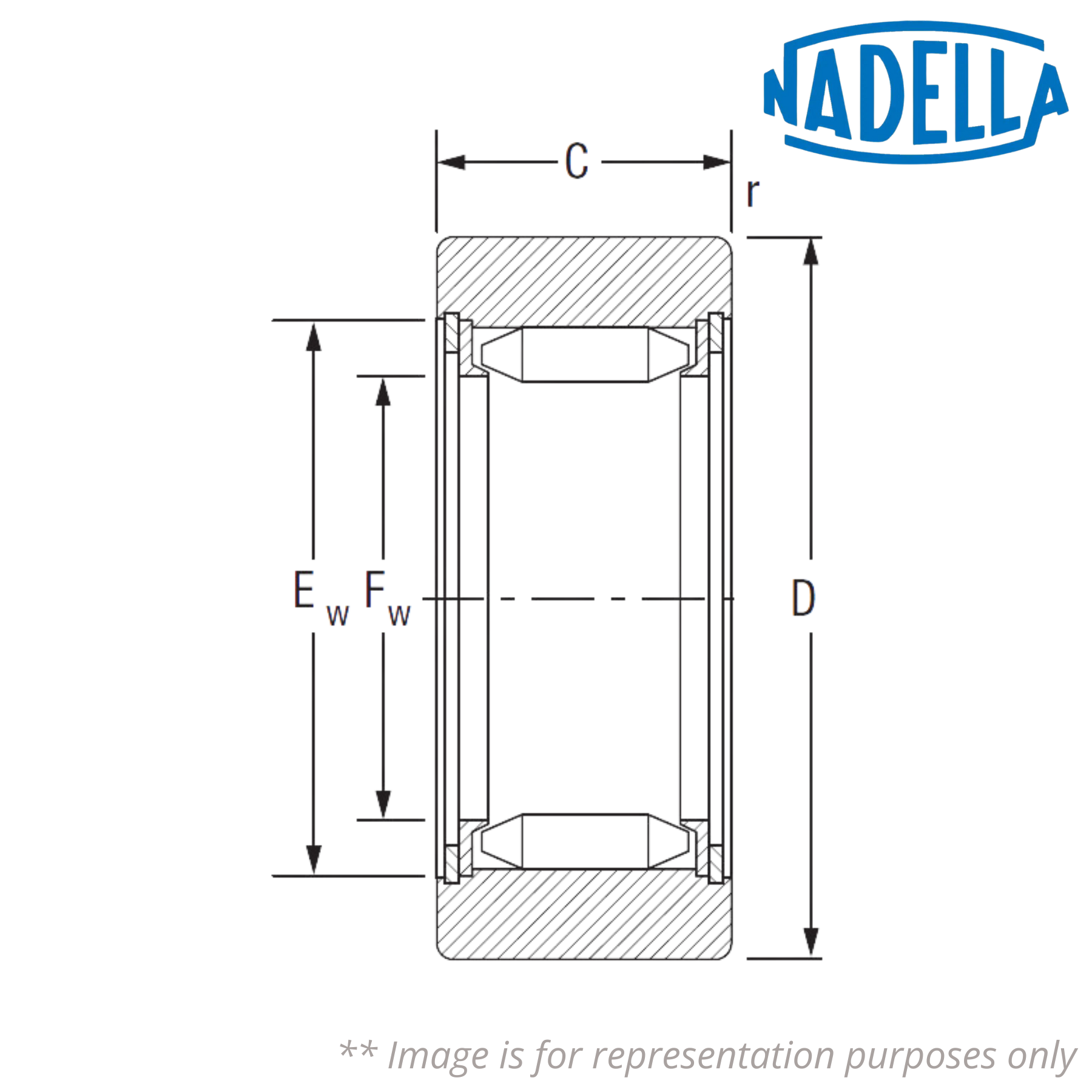

Outer Diameter (D) mm - 62
Recommended Tolerance Per Fw Diameter of the Pivot without the Use of Inner Ring (mm) - 38.2
Tolerances on the D Dimension (mm) - 62
C nom. (mm) - 22
C tol. (mm) - -0.20 -0.30
Ew (mm) - 44.2
r (mm) - 0.65
Weight (g) - 275
Load Coefficient (Cw) N - 28500
Dynamic Load Coefficient (Fr) N - 31500
Static Load Coefficient (For) N - 49500
Speed Limit with Grease (min-1) - 2050
