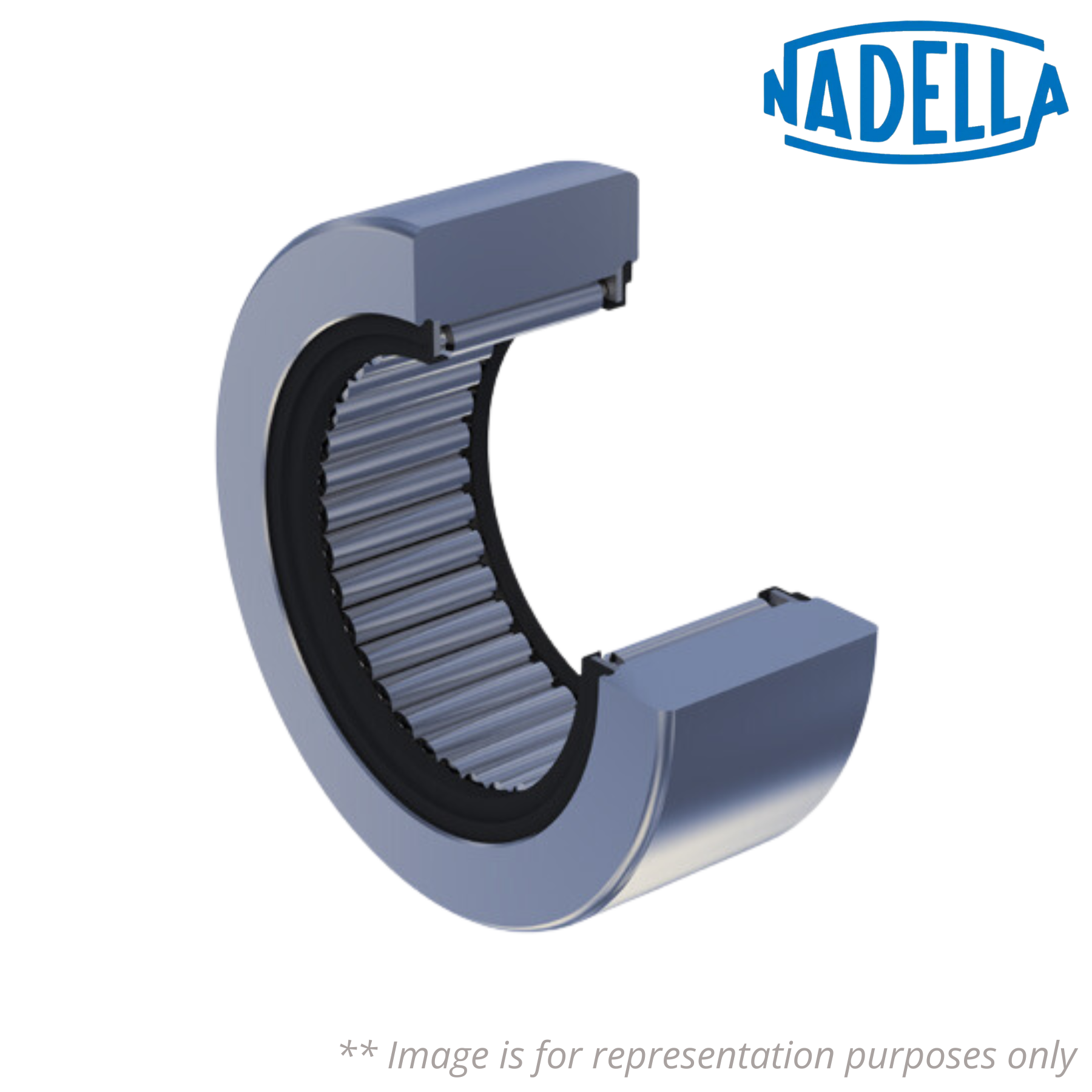

RNA11040 B6 NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - RNA11040 B6 NADELLA
Category - Full Complement Needle Rollers without Inner Ring
Also Known As - RNA11040B6

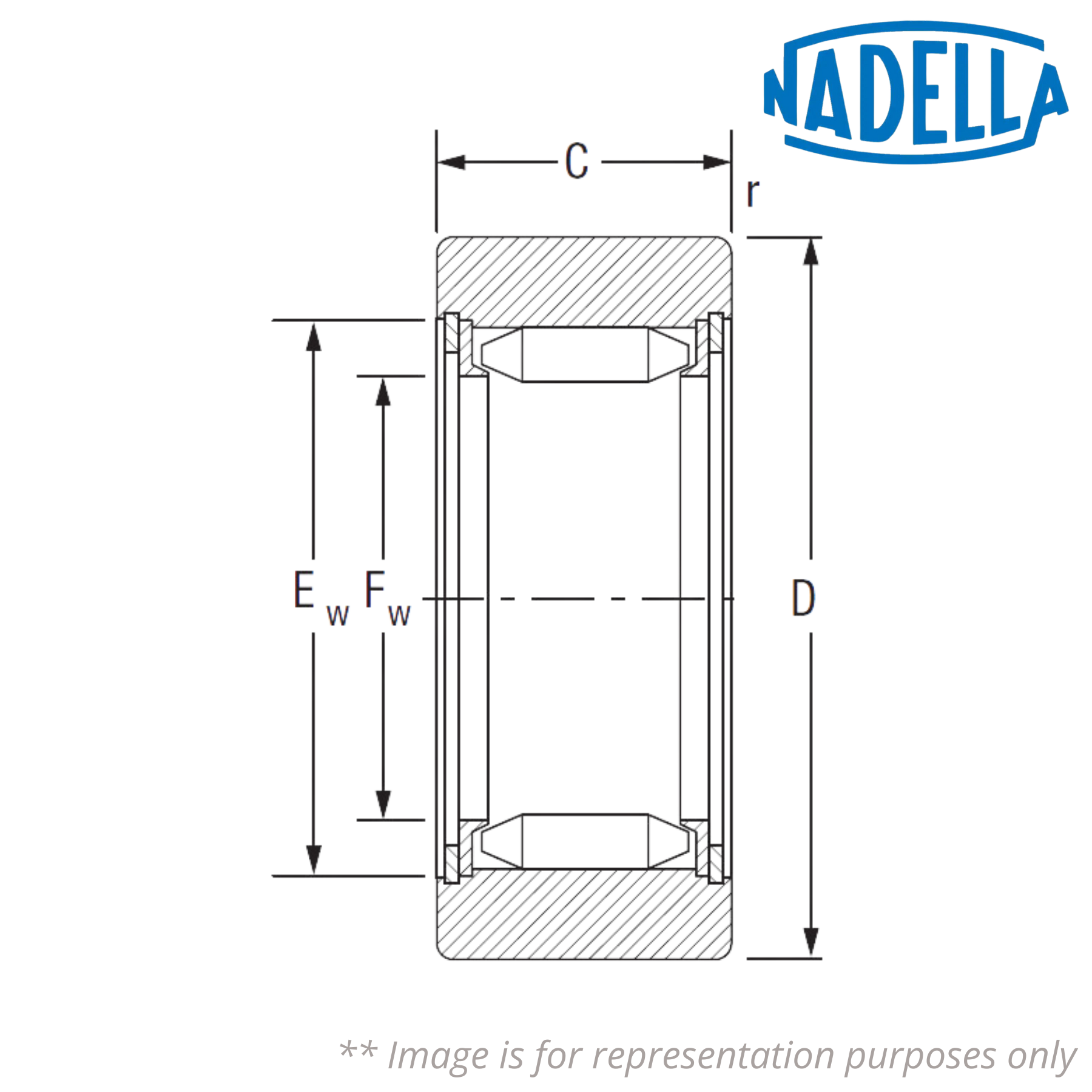

Outer Diameter (D) mm - 72
Recommended Tolerance Per Fw Diameter of the Pivot without the Use of Inner Ring (mm) - 44
Tolerances on the D Dimension (mm) - 72
C nom. (mm) - 22
C tol. (mm) - -0.22 -0.34
Ew (mm) - 50
r (mm) - 0.65
Weight (g) - 370
Load Coefficient (Cw) N - 32000
Dynamic Load Coefficient (Fr) N - 41000
Static Load Coefficient (For) N - 61000
Speed Limit with Grease (min-1) - 1800
