RNA11045 B6 NADELLA

Brand - NADELLA
Item Number - RNA11045 B6 NADELLA
Category - Full Complement Needle Roller Bearing
Also Known As - RNA11045B6

Principal Dimensions & Load Ratings (Metric) :
∅ Outer Diameter (D) - 85 mm
Inner Diameter (Fw *) - 55.4 mm
Outer Diameter (D) - 85 (h7) mm
Width (C) - 22 mm
Dimension (Ew) - 62.4 mm
Minimum Chamfer Dimension (r) - 0.85 mm
Weight - 0.48 kg
Load coefficients (Cw *) - 33500 N
Load coefficients (Din Fr *) - 47500 N
Load coefficients (Stat. For *) - 69000 N
Speed Limit with Greasing - 1450 rpm

Dimensions of Compatible Inner Ring :
Part Number of Compatible Inner Ring - BIC 2045
∅ Shaft Diameter - 45 mm
Inner Diameter (d) - 45 mm
Outer Diameter (F) - 55.4 mm
Width (B) - 22 (0 to -0.12) mm
Minimum Chamfer Dimension (r1) - 0.85 mm
Weight - 0.139 kg
For Cam Follower Type - 11045

Description of Suffixes and Prefixes :
RNA - Full complement needle bearing without inner ring
B6 - Convex Outer Diameter For RNA 11 000 Series Cam Followers

Other Salient points to be noted :
* Recommended tolerance per Fw diameter of the pivot without the use of inner ring: h5

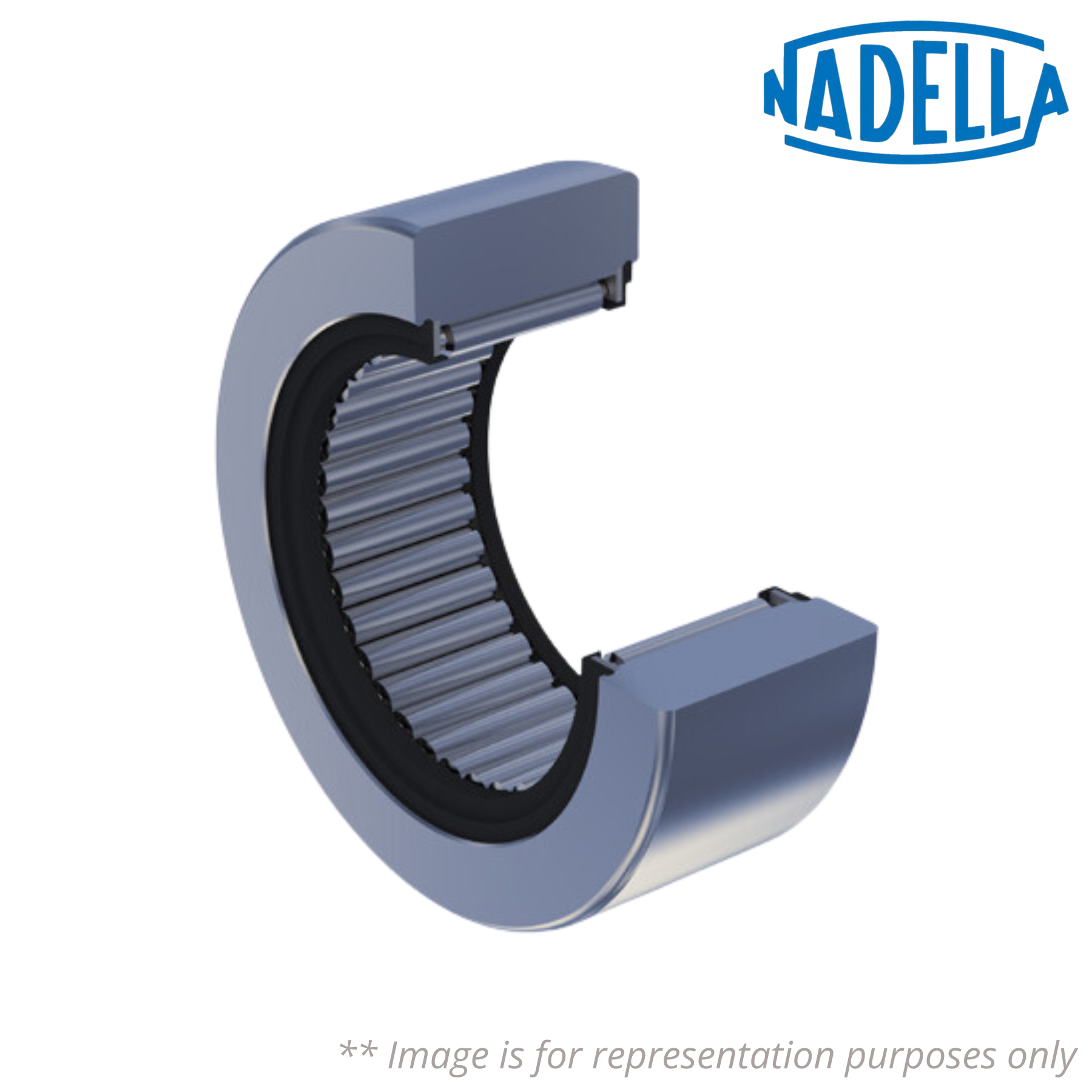

♦ ♦ Images are for representation purposes only
