RNA14601 B6 NADELLA

Brand - NADELLA
Item Number - RNA14601 B6 NADELLA
Category - Full Complement Needle Roller Bearing
Also Known As - RNA14601B6

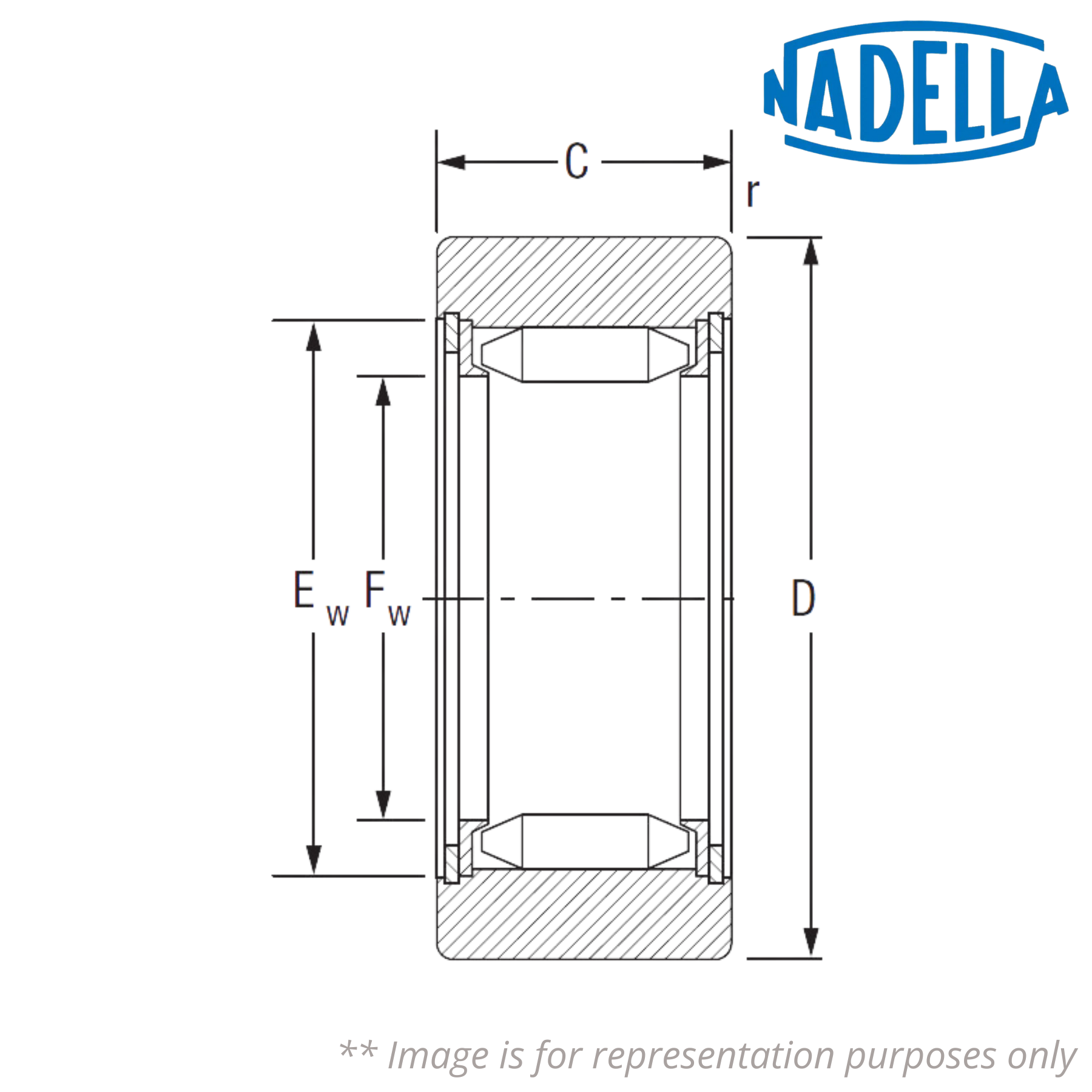

Principal Dimensions & Load Ratings (Metric) :
∅ Outer Diameter (D) - 24 mm
Inner Diameter (Fw *) - 12.1 mm
Outer Diameter (D) - 24 (h7) mm
Width (C) - 12 mm
Dimension (Ew) - 17.1 mm
Minimum Chamfer Dimension (r) - 0.35 mm
Weight - 0.027 kg
Load coefficients (Cw *) - 6200 N
Load coefficients (Din Fr *) - 4700 N
Load coefficients (Stat. For *) - 5600 N
Speed Limit with Greasing - 5800 rpm

Description of Suffixes and Prefixes :
RNA - Full complement needle bearing without inner ring
B6 - Convex Outer Diameter For RNA 11 000 Series Cam Followers

Other Salient points to be noted :
* Recommended tolerance per Fw diameter of the pivot without the use of inner ring: h5

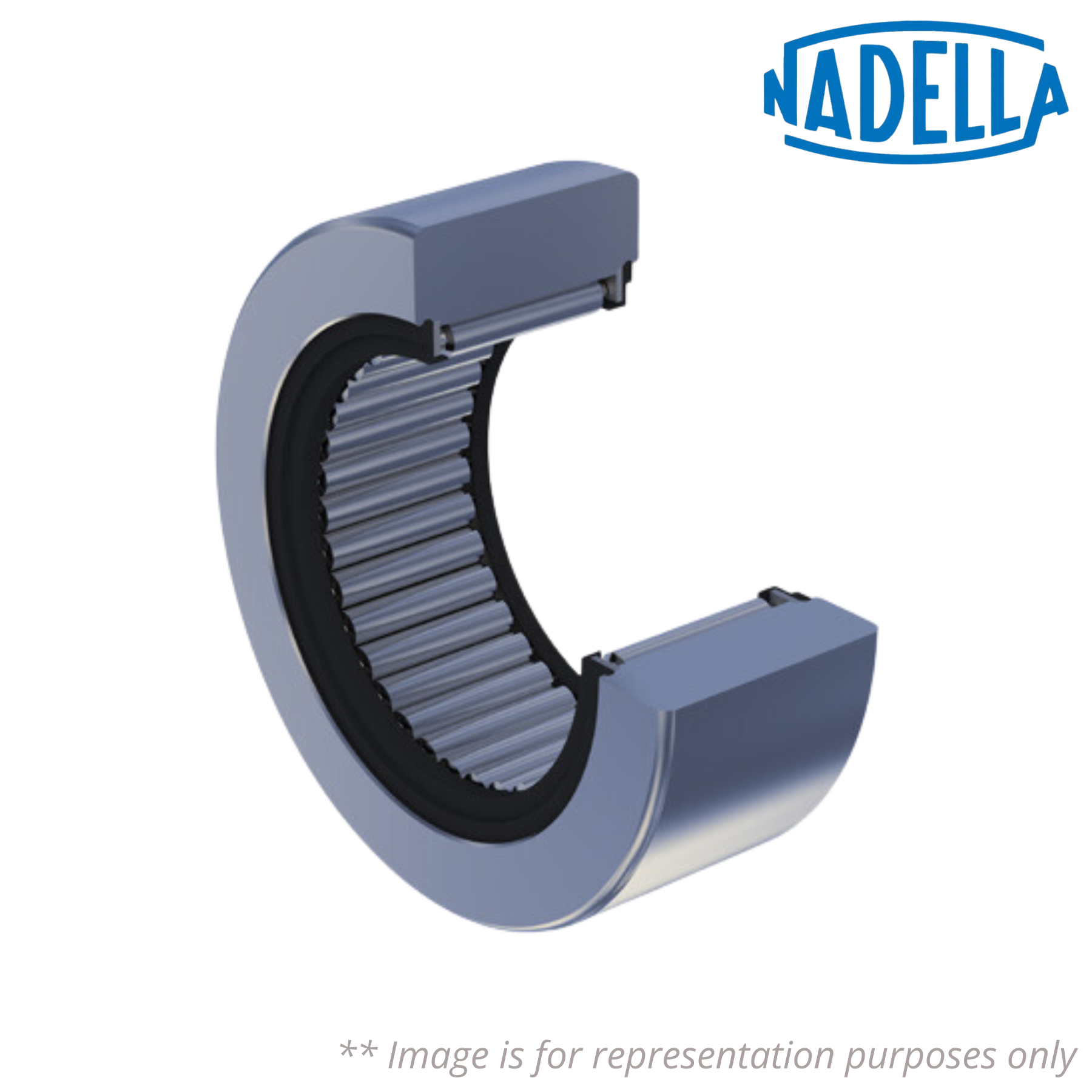

♦ ♦ Images are for representation purposes only
