Description
Brand - NADELLA
Item Number - К40х47х20 NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 40 mm
Diameter of the Inner Raceway (Fw) - 40 mm
Dimension (Ew) - 47 mm
Dimension (Bc) - 20 mm
Dynamic Load Rating (C) - 31.1 mm
Static Load Rating (C0) - 52.1 mm
Speed Rating with Grease - 7000 rpm
Speed Rating with Oil - 11000 rpm

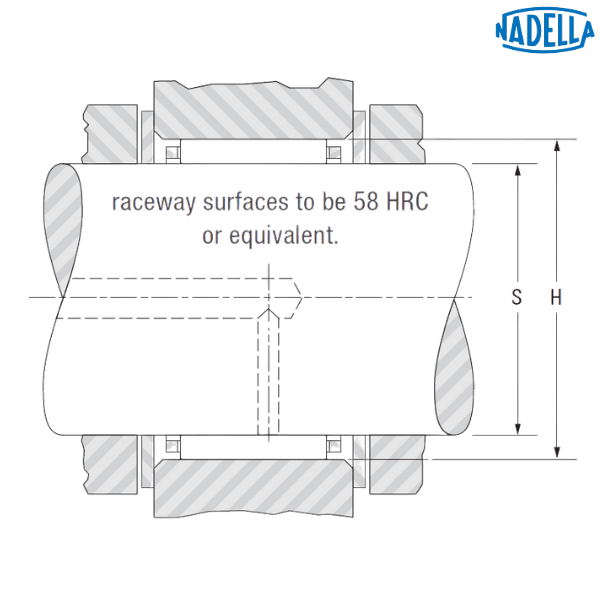

Maximum Mounting Dimension (S) - 40 mm
Minimum Mounting Dimension (S) - 39.989 mm
Maximum Mounting Dimension (H) - 47.025 mm
Minimum Mounting Dimension (H) - 47.009 mm
Weight - 0.042 kg
Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies

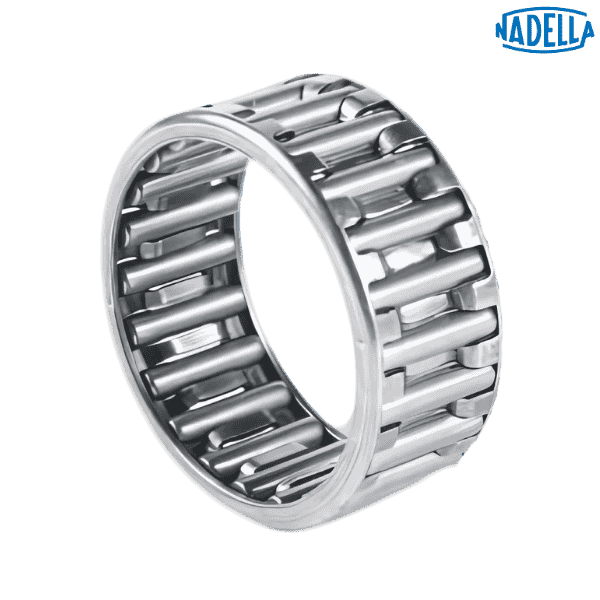

♦♦ Images are for representation purposes only
Item Number - К40х47х20 NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 40 mm
Diameter of the Inner Raceway (Fw) - 40 mm
Dimension (Ew) - 47 mm
Dimension (Bc) - 20 mm
Dynamic Load Rating (C) - 31.1 mm
Static Load Rating (C0) - 52.1 mm
Speed Rating with Grease - 7000 rpm
Speed Rating with Oil - 11000 rpm
Maximum Mounting Dimension (S) - 40 mm
Minimum Mounting Dimension (S) - 39.989 mm
Maximum Mounting Dimension (H) - 47.025 mm
Minimum Mounting Dimension (H) - 47.009 mm
Weight - 0.042 kg
Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
♦♦ Images are for representation purposes only
