Description
Brand - DODGE
Item Number - 004081 DODGE - P4B-BAR-215
Category - Sleeve Bearings - Rigid Babbitted Journal Bearings (Split Housing)
Shaft Size (inch) - 2.9375
Description - P4B-BAR-215
Weight (lbs) - 30.6

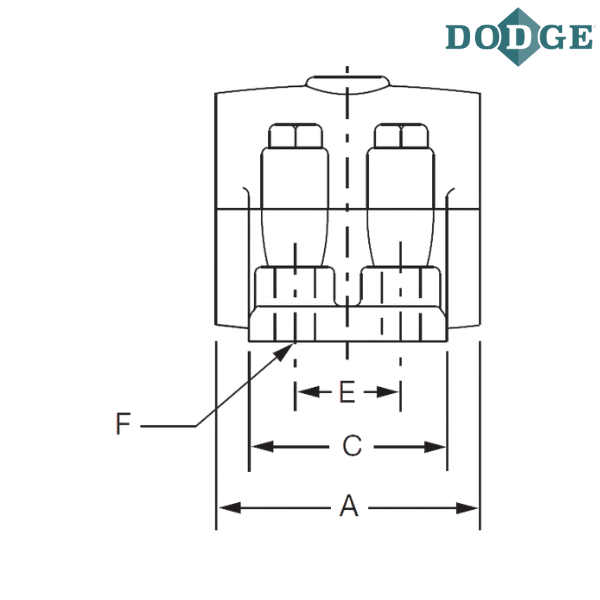

Length Through Bore (A) inch - 6

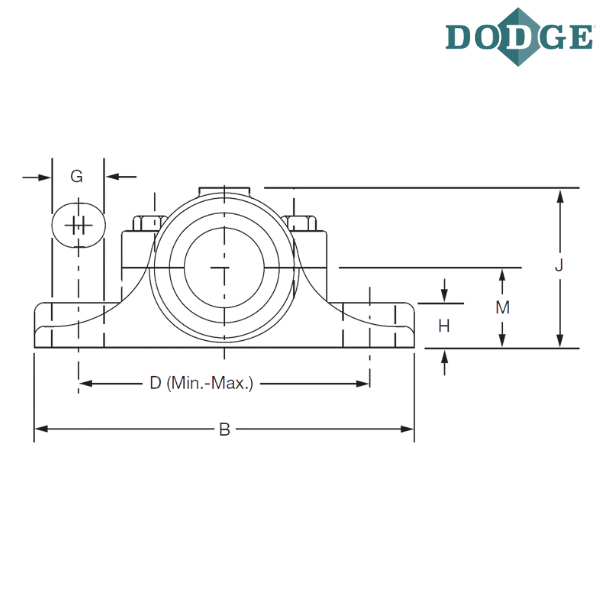

Overall Length (B) inch - 11
C (inch) - 4.5
Bolt to Bolt Minimum Distance (D min) inch - 8.5
Bolt to Bolt Maximum Distance (D max) inch - 9
E (inch) - 2.5
F-Bolt Diameter (inch) - 0.625
G (inch) - 1
H (inch) - 1.375
Overall Height (J) inch - 5
Base to Center Height (M) inch - 2.5
Grease Cups (Pipe Tap) inch - 0.375
Grease Cups (Number Required) - 1
Grease Cups (Size) - 2
Notes :
P4B - Pillow Block, 4 Bolt Base
BAR - Babbitted Rigid
215 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

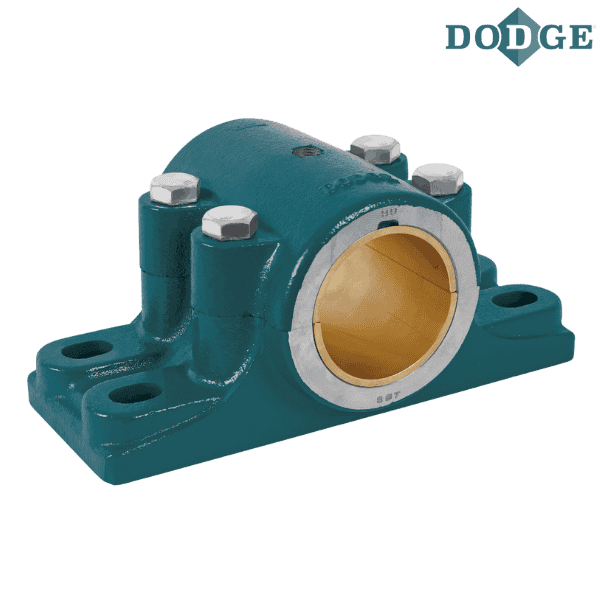

** Images are for representation purposes only
