Description
Brand - DODGE
Item Number - 004099 DODGE - P4B-BAR-407
Category - Sleeve Bearings - Rigid Babbitted Journal Bearings (Split Housing)
Shaft Size (inch) - 4.4375
Description - P4B-BAR-407
Weight (lbs) - 88

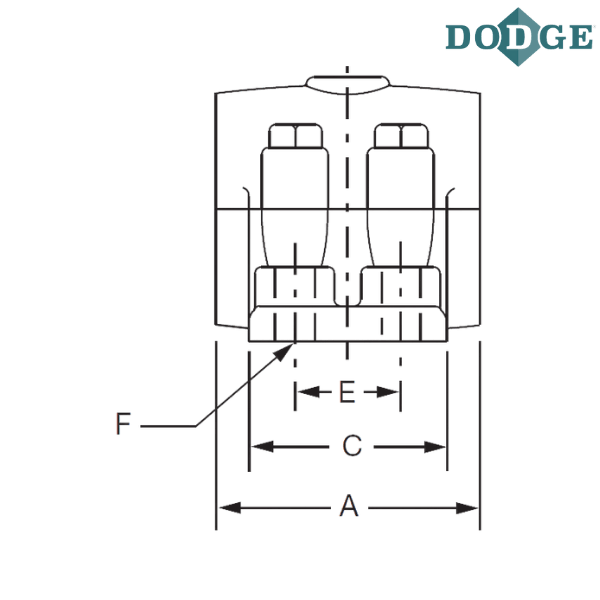

Length Through Bore (A) inch - 9

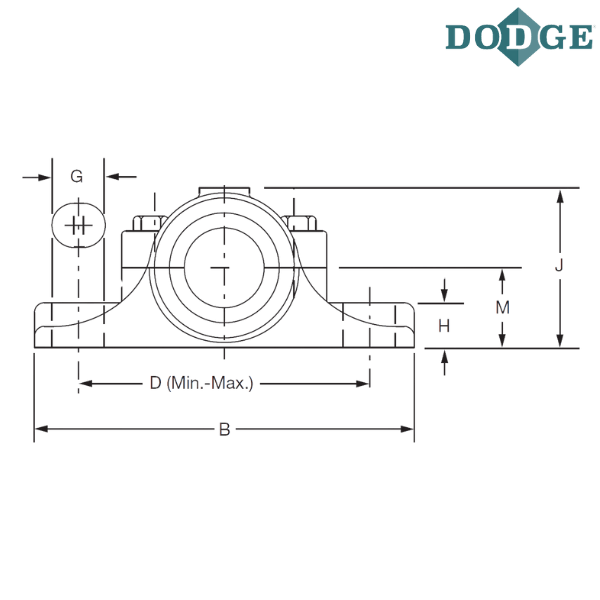

Overall Length (B) inch - 16.5
C (inch) - 6.25
Bolt to Bolt Minimum Distance (D min) inch - 13
Bolt to Bolt Maximum Distance (D max) inch - 14
E (inch) - 3.5
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.5
H (inch) - 1.75
Overall Height (J) inch - 7.53125
Base to Center Height (M) inch - 4.125
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Number Required) - 1
Grease Cups (Size) - 4
Notes :
P4B - Pillow Block, 4 Bolt Base
BAR - Babbitted Rigid
407 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

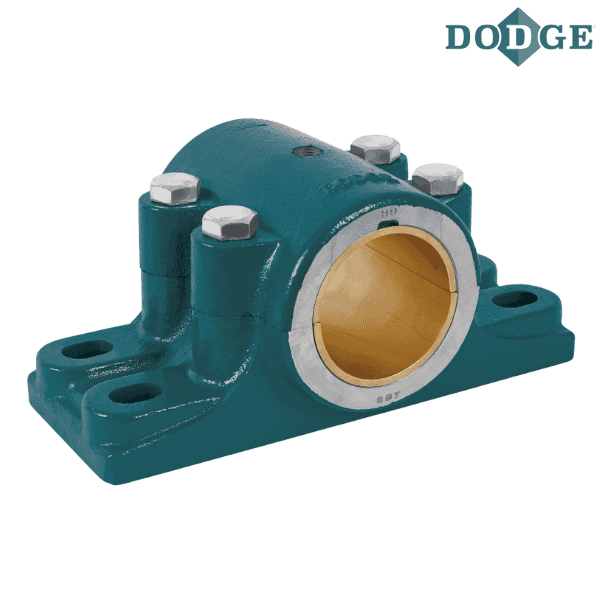

** Images are for representation purposes only
