Description
Brand - DODGE

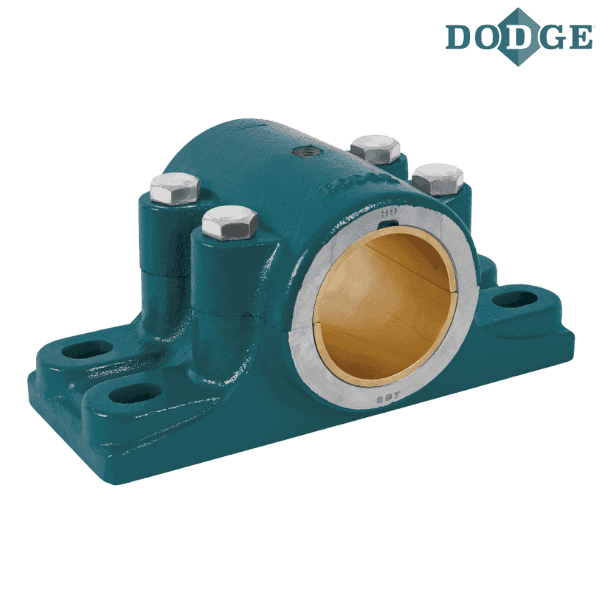

Item Number - 004102 DODGE - P4B-BAR-415
Category - Sleeve Bearings - Rigid Babbitted Journal Bearings (Split Housing)
Shaft Size (inch) - 4.9375
Description - P4B-BAR-415
Weight (lbs) - 113

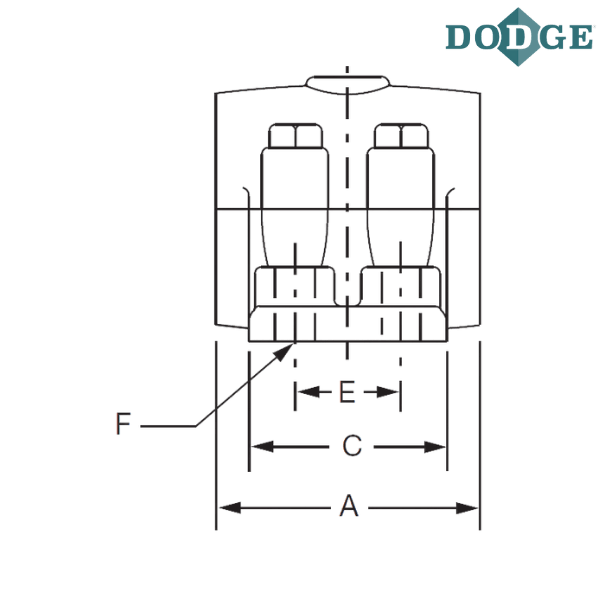

Length Through Bore (A) inch - 10

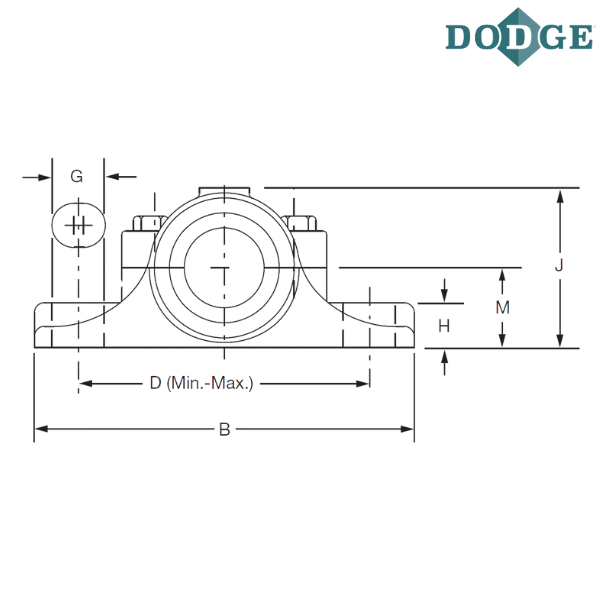

Overall Length (B) inch - 18
C (inch) - 7
Bolt to Bolt Minimum Distance (D min) inch - 14.375
Bolt to Bolt Maximum Distance (D max) inch - 15.625
E (inch) - 4
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.625
H (inch) - 1.875
Overall Height (J) inch - 8.21875
Base to Center Height (M) inch - 4.5
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Number Required) - 1
Grease Cups (Size) - 4
Notes :
P4B - Pillow Block, 4 Bolt Base
BAR - Babbitted Rigid
415 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
