Description
Brand - DODGE

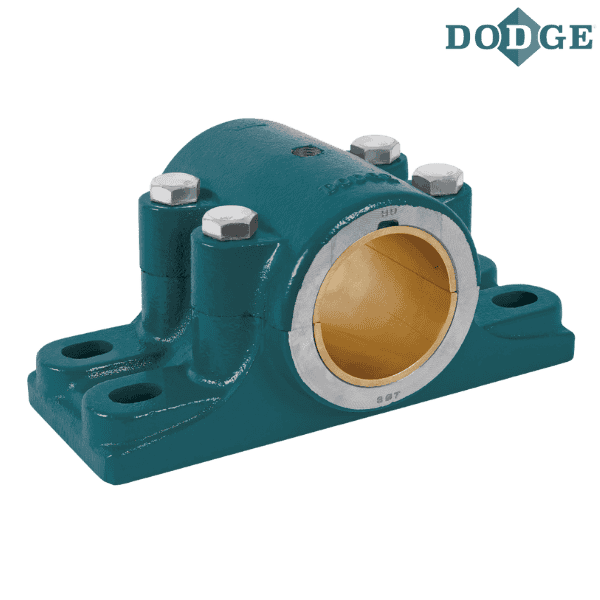

Item Number - 004105 DODGE - P4B-BAR-507
Category - Sleeve Bearings - Rigid Babbitted Journal Bearings (Split Housing)
Shaft Size (inch) - 5.4375
Description - P4B-BAR-507
Weight (lbs) - 147

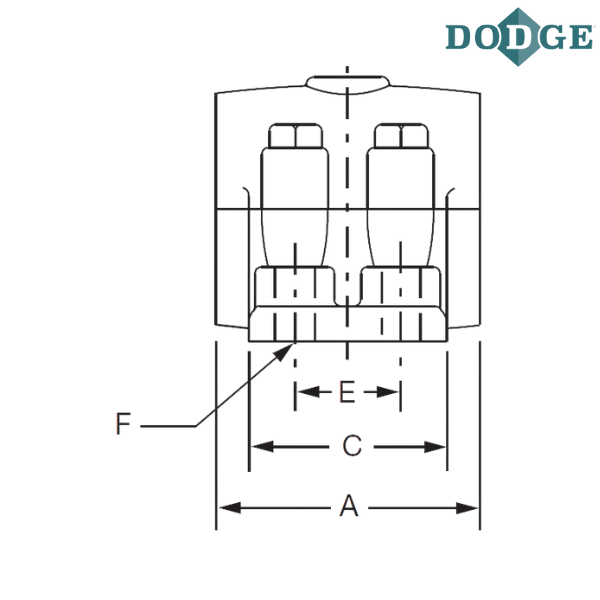

Length Through Bore (A) inch - 11

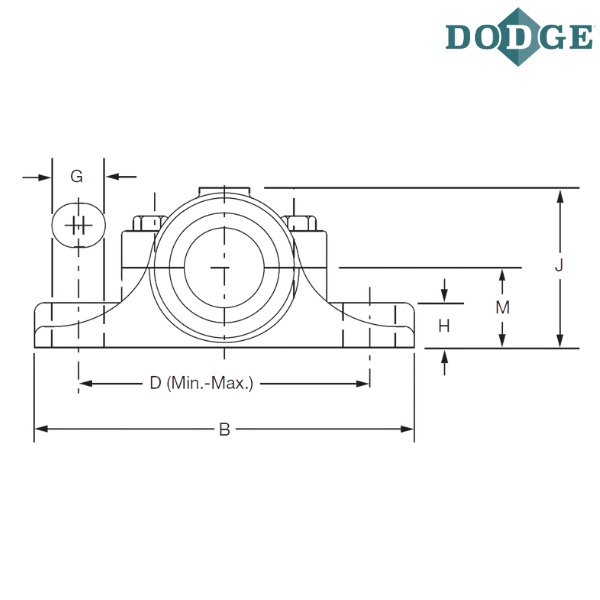

Overall Length (B) inch - 19.25
C (inch) - 7.75
Bolt to Bolt Minimum Distance (D min) inch - 15.125
Bolt to Bolt Maximum Distance (D max) inch - 16.375
E (inch) - 4.5
F-Bolt Diameter (inch) - 1
G (inch) - 1.75
H (inch) - 2
Overall Height (J) inch - 9.03125
Base to Center Height (M) inch - 5
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Number Required) - 2
Grease Cups (Size) - 3
Notes :
P4B - Pillow Block, 4 Bolt Base
BAR - Babbitted Rigid
507 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
