Description
Brand - DODGE
Item Number - 004115 DODGE - P4B-BAR-708
Category - Sleeve Bearings - Rigid Babbitted Journal Bearings (Split Housing)
Shaft Size (inch) - 7.5
Description - P4B-BAR-708
Weight (lbs) - 370
Length Through Bore (A) inch - 15
Overall Length (B) inch - 24.5
C (inch) - 10.5
Bolt to Bolt Minimum Distance (D min) inch - 19.375
Bolt to Bolt Maximum Distance (D max) inch - 20.625
E (inch) - 6.25
F-Bolt Diameter (inch) - 1.375
G (inch) - 2.125
H (inch) - 2.5
Overall Height (J) inch - 12.15625
Base to Center Height (M) inch - 6.75
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Number Required) - 2
Grease Cups (Size) - 4
Notes :
P4B - Pillow Block, 4 Bolt Base
BAR - Babbitted Rigid
708 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

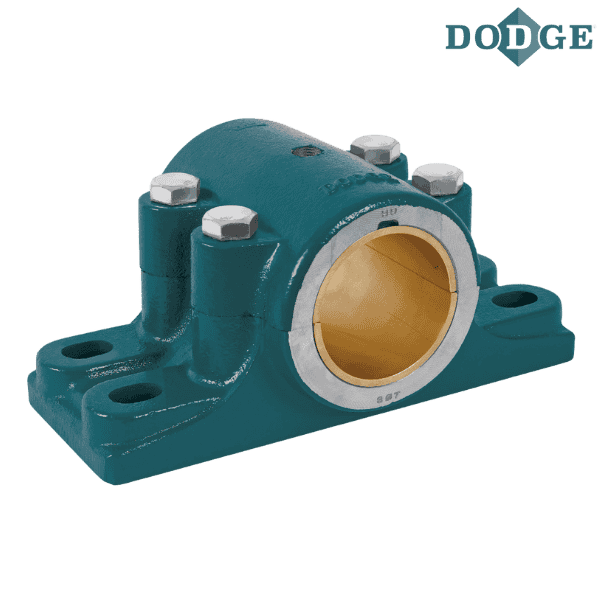

** Images are for representation purposes only
