Description
Brand - DODGE
Item Number - 005070 DODGE - P2B-BZSP-115

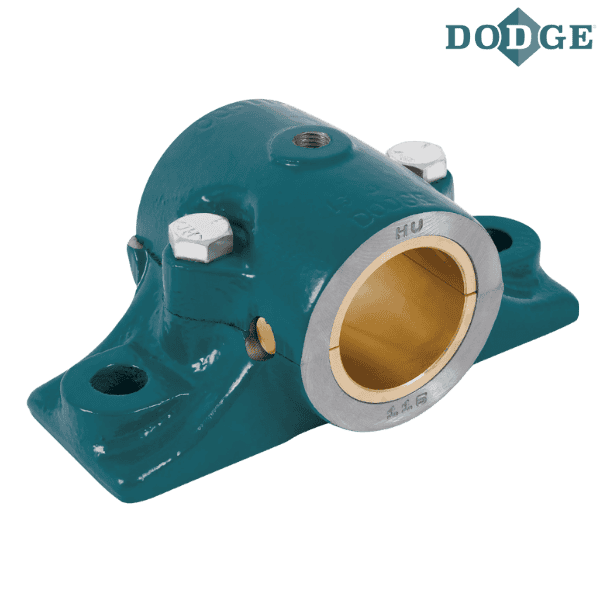

Category - Sleeve Bearings - Bronze-Bushed Split Journal Bearing
Shaft Size (inch) - 1.9375
Description - P2B-BZSP-115
Weight (lbs) - 9

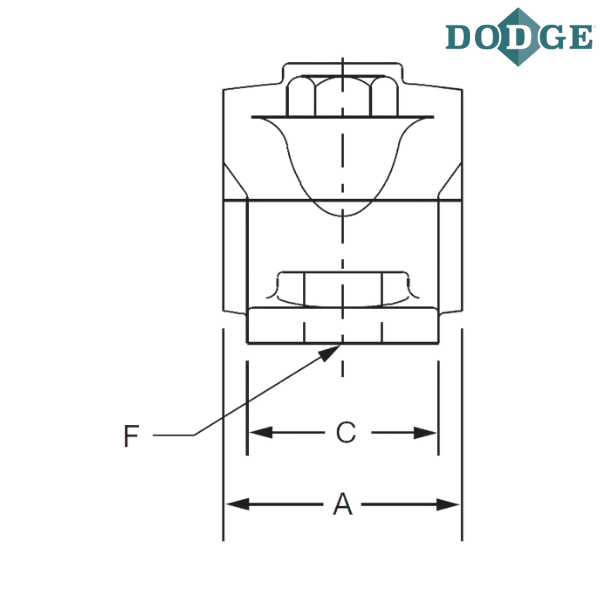

Length Through Bore (A) inch - 3.875

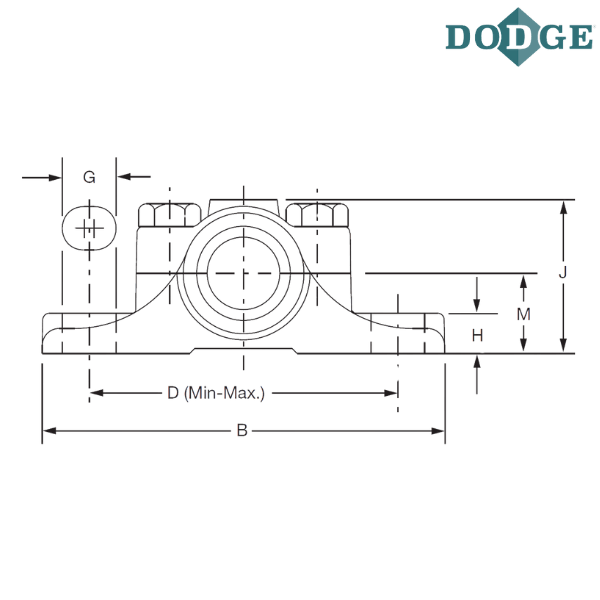

Overall Length (B) inch - 7.5
C (inch) - 2.5
Bolt to Bolt Minimum Distance (D min) inch - 5.9375
Bolt to Bolt Maximum Distance (D max) inch - 6.0625
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.8125
H (inch) - 0.9375
Overall Height (J) inch - 3.5
Base to Center Height (M) inch - 1.75
Grease Cups (Pipe Tap) inch - 0.25
Grease Cups (Number Required) - 1
Grease Cups (Size) - 0
Notes :
P2B - Pillow Block, 2 Bolt Base
BZSP - Bronze Bushed Split
115 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
