Description
Brand - DODGE
Item Number - 005076 DODGE - P2B-BZSP-207

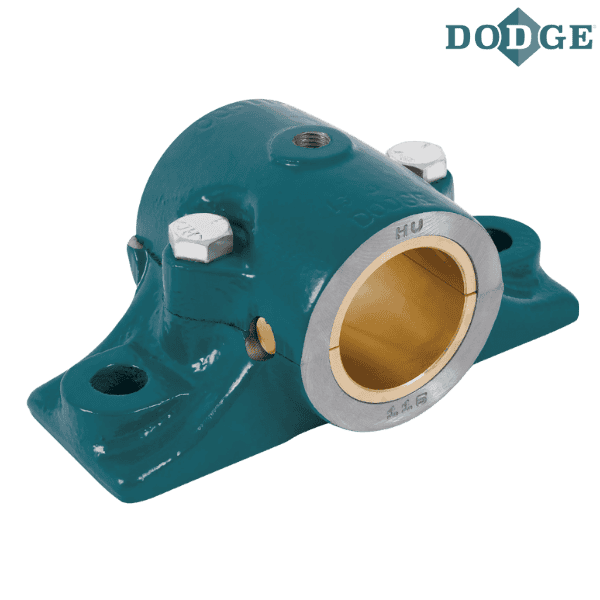

Category - Sleeve Bearings - Bronze-Bushed Split Journal Bearing
Shaft Size (inch) - 2.4375
Description - P2B-BZSP-207
Weight (lbs) - 15

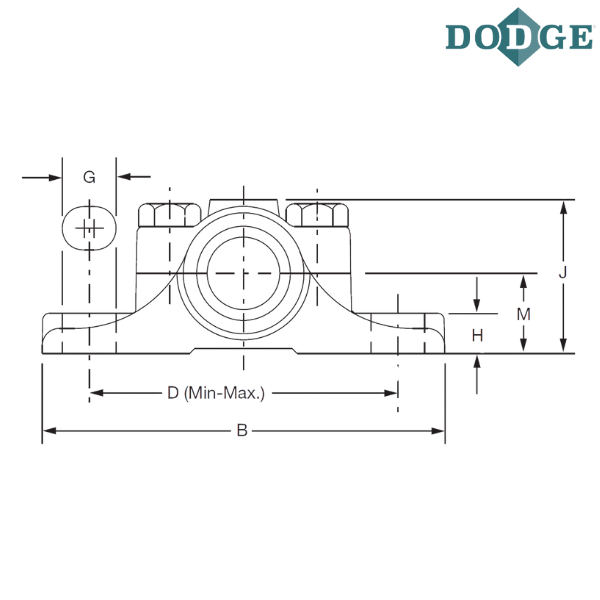

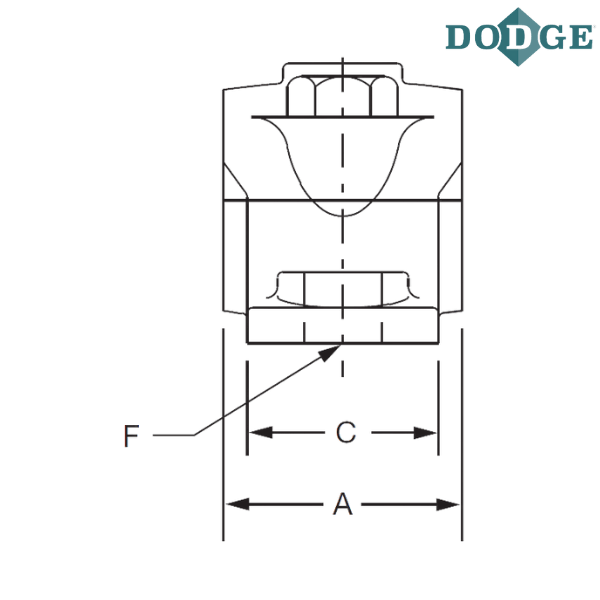

Length Through Bore (A) inch - 4.875
Overall Length (B) inch - 9.25
C (inch) - 3
Bolt to Bolt Minimum Distance (D min) inch - 6.875
Bolt to Bolt Maximum Distance (D max) inch - 7.375
F-Bolt Diameter (inch) - 0.625
G (inch) - 1
H (inch) - 1.125
Overall Height (J) inch - 4.25
Base to Center Height (M) inch - 2.125
Grease Cups (Pipe Tap) inch - 0.375
Grease Cups (Number Required) - 1
Grease Cups (Size) - 2
Notes :
P2B - Pillow Block, 2 Bolt Base
BZSP - Bronze Bushed Split
207 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
