Description
Brand - DODGE
Item Number - 005079 DODGE - P2B-BZSP-211

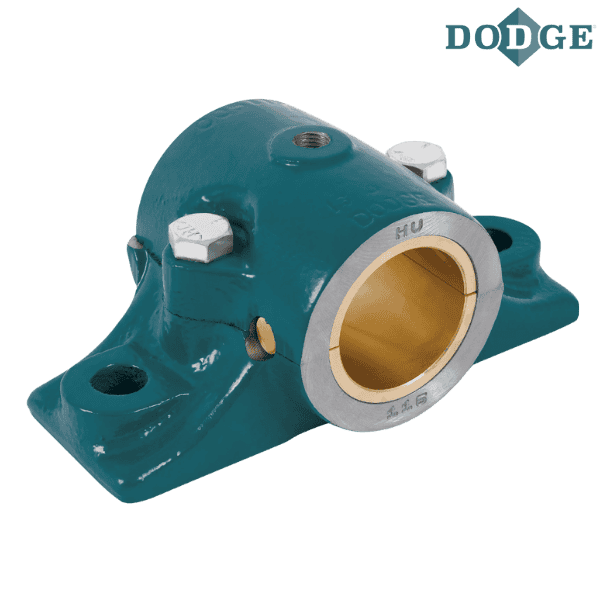

Category - Sleeve Bearings - Bronze-Bushed Split Journal Bearing
Shaft Size (inch) - 2.6875
Description - P2B-BZSP-211
Weight (lbs) - 20

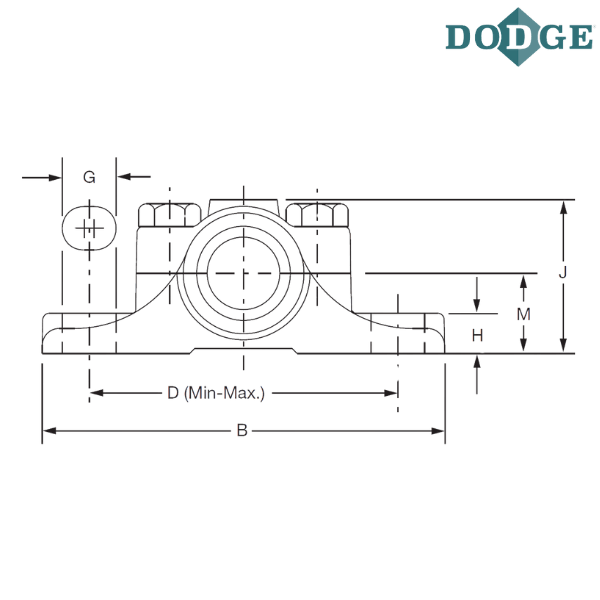

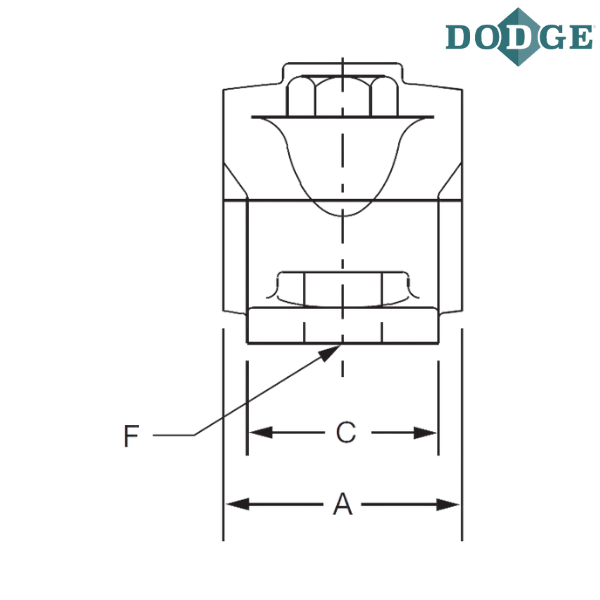

Length Through Bore (A) inch - 5.375
Overall Length (B) inch - 10
C (inch) - 3.25
Bolt to Bolt Minimum Distance (D min) inch - 7.5
Bolt to Bolt Maximum Distance (D max) inch - 8
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.125
H (inch) - 1.1875
Overall Height (J) inch - 4.5625
Base to Center Height (M) inch - 2.25
Grease Cups (Pipe Tap) inch - 0.375
Grease Cups (Number Required) - 1
Grease Cups (Size) - 2
Notes :
P2B - Pillow Block, 2 Bolt Base
BZSP - Bronze Bushed Split
211 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
