Description
Brand - DODGE
Item Number - 005082 DODGE - P2B-BZSP-215

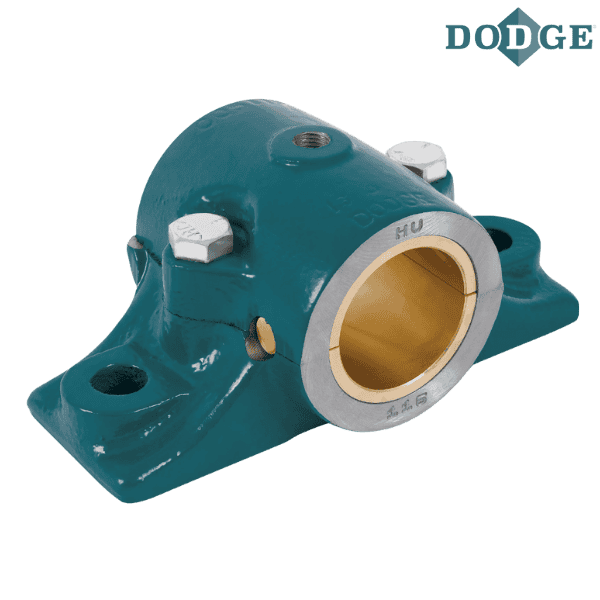

Category - Sleeve Bearings - Bronze-Bushed Split Journal Bearing
Shaft Size (inch) - 2.9375
Description - P2B-BZSP-215
Weight (lbs) - 24

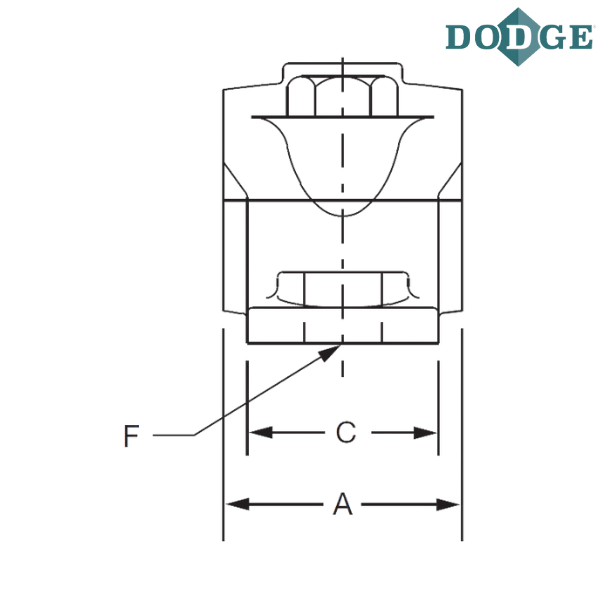

Length Through Bore (A) inch - 6
Overall Length (B) inch - 10.75
C (inch) - 3.5
Bolt to Bolt Minimum Distance (D min) inch - 8.25
Bolt to Bolt Maximum Distance (D max) inch - 8.75
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.125
H (inch) - 1.3125
Overall Height (J) inch - 5
Base to Center Height (M) inch - 2.5
Grease Cups (Pipe Tap) inch - 0.375
Grease Cups (Number Required) - 1
Grease Cups (Size) - 2
Notes :
P2B - Pillow Block, 2 Bolt Base
BZSP - Bronze Bushed Split
215 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
