Description
Brand - DODGE
Item Number - 005085 DODGE - P4B-BZR-307

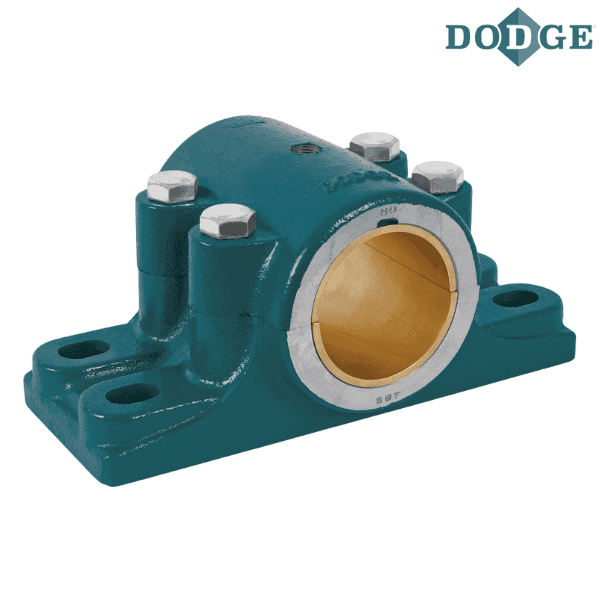

Category - Sleeve Bearings - Bronze-Bushed Split Journal Bearing
Shaft Size (inch) - 3.4375
Description - P4B-BZR-307
Weight (lbs) - 47

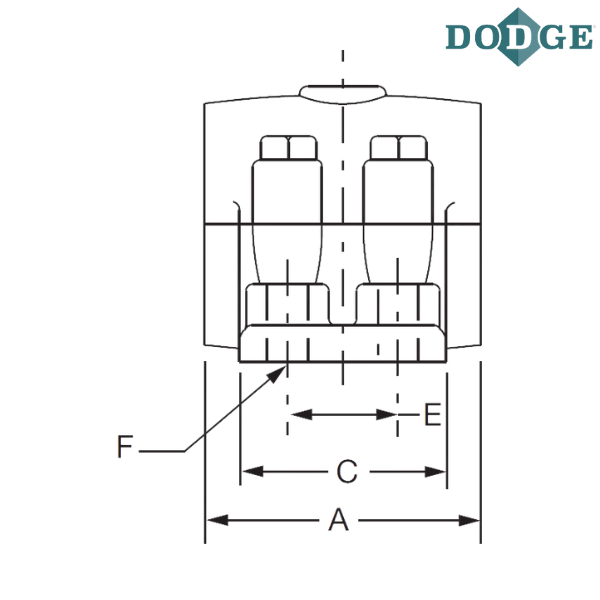

Length Through Bore (A) inch - 7

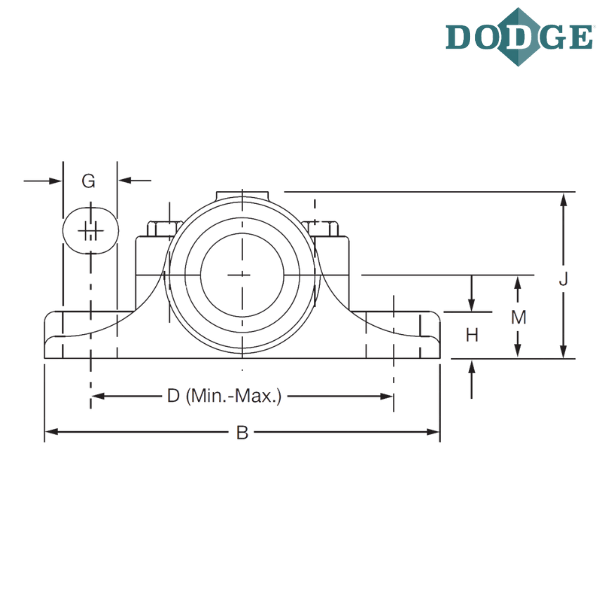

Overall Length (B) inch - 13
C (inch) - 5
Bolt to Bolt Minimum Distance (D min) inch - 10.125
Bolt to Bolt Maximum Distance (D max) inch - 10.875
E (inch) - 2.75
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.25
H (inch) - 1.5
Overall Height (J) inch - 6.03125
Base to Center Height (M) inch - 3.25
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Number Required) - 1
Grease Cups (Size) - 3
Notes :
P2B - Pillow Block, 2 Bolt Base
BZR - Bronze Bushed Rigid
307 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
