Description
Brand - DODGE
Item Number - 005094 DODGE - P4B-BZR-415

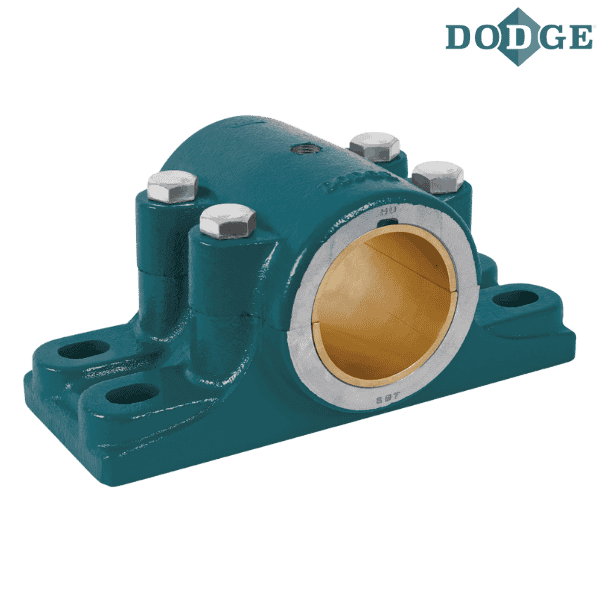

Category - Sleeve Bearings - Bronze-Bushed Split Journal Bearing
Shaft Size (inch) - 4.9375
Description - P4B-BZR-415
Weight (lbs) - 115

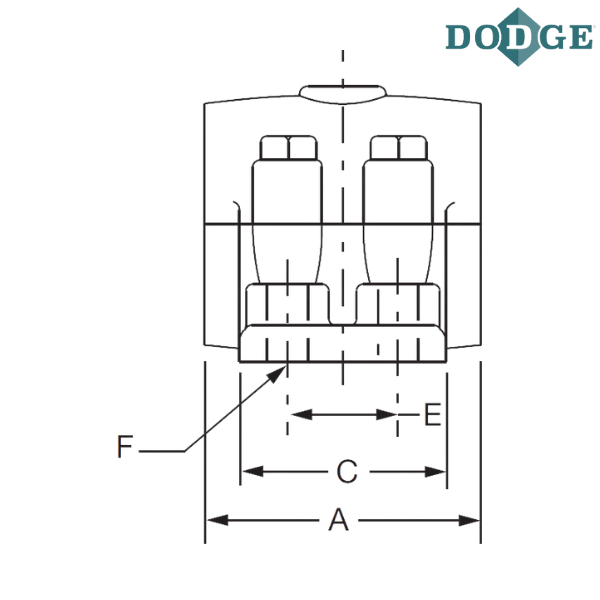

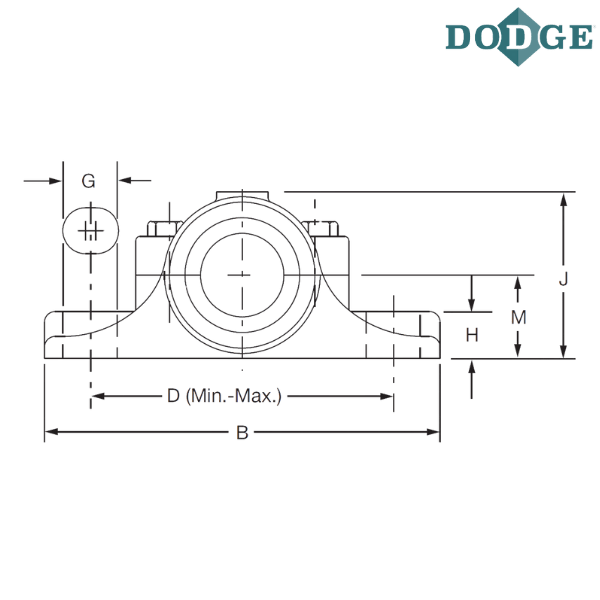

Length Through Bore (A) inch - 10
Overall Length (B) inch - 18
C (inch) - 7
Bolt to Bolt Minimum Distance (D min) inch - 14.375
Bolt to Bolt Maximum Distance (D max) inch - 15.625
E (inch) - 4
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.625
H (inch) - 1.875
Overall Height (J) inch - 8.03125
Base to Center Height (M) inch - 4.5
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Number Required) - 1
Grease Cups (Size) - 4
Notes :
P2B - Pillow Block, 2 Bolt Base
BZR - Bronze Bushed Rigid
415 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
