Description
Brand - DODGE
Item Number - 005097 DODGE - P4B-BZR-507

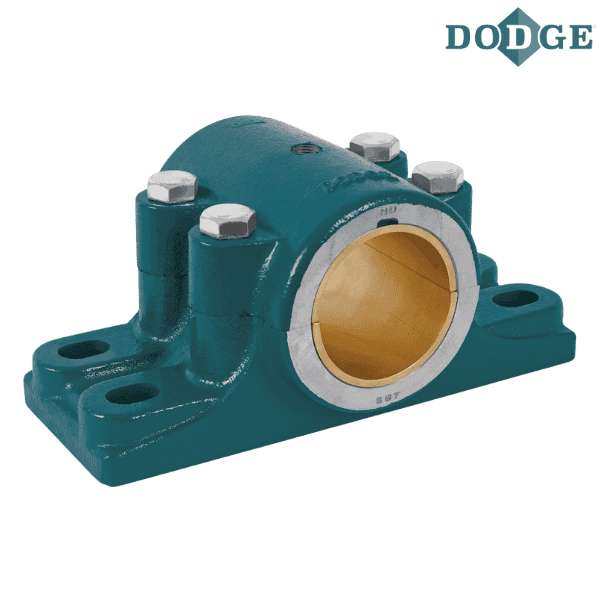

Category - Sleeve Bearings - Bronze-Bushed Split Journal Bearing
Shaft Size (inch) - 5.4375
Description - P4B-BZR-507
Weight (lbs) - 137

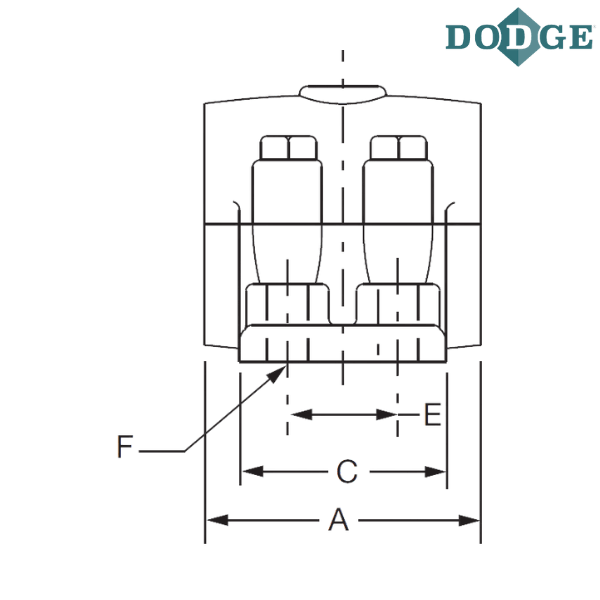

Length Through Bore (A) inch - 11

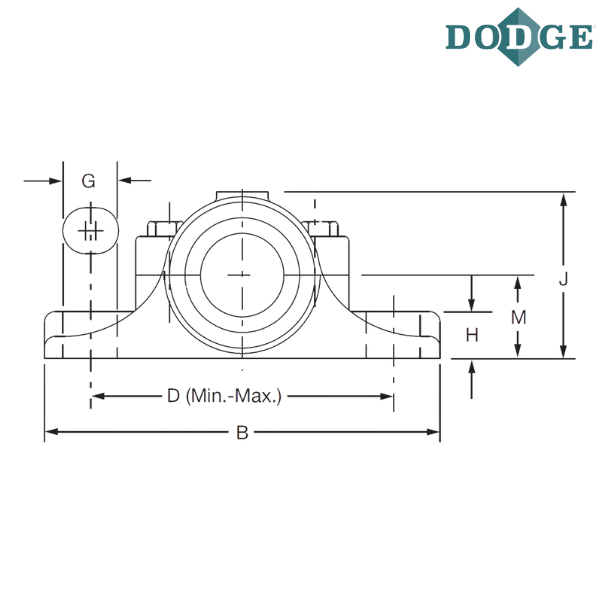

Overall Length (B) inch - 19.25
C (inch) - 7.75
Bolt to Bolt Minimum Distance (D min) inch - 15.125
Bolt to Bolt Maximum Distance (D max) inch - 16.375
E (inch) - 4.5
F-Bolt Diameter (inch) - 1
G (inch) - 1.75
H (inch) - 2
Overall Height (J) inch - 8.9375
Base to Center Height (M) inch - 5
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Number Required) - 2
Grease Cups (Size) - 3
Notes :
P2B - Pillow Block, 2 Bolt Base
BZR - Bronze Bushed Rigid
507 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
