Description
Brand - DODGE

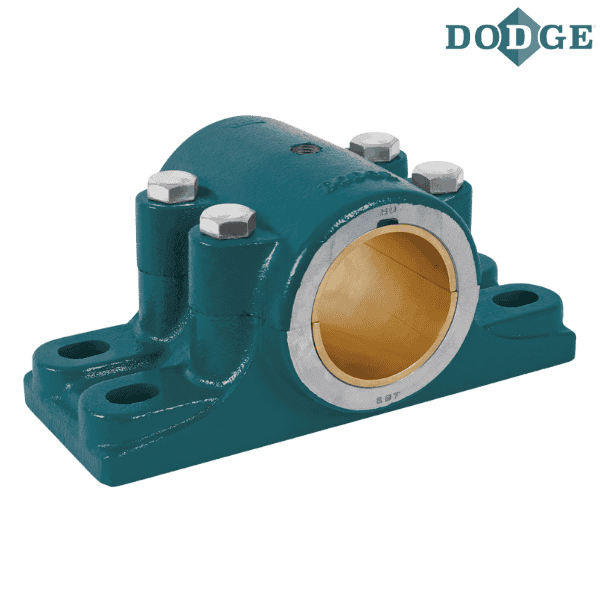

Item Number - 005195 DODGE - P4B-BZR-608
Category - Sleeve Bearings - Bronze-Bushed Split Journal Bearing
Shaft Size (inch) - 6.5
Description - P4B-BZR-608
Weight (lbs) - 255

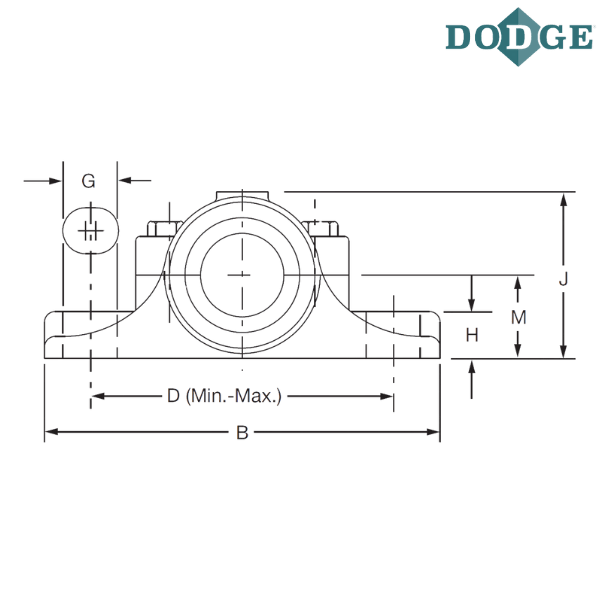

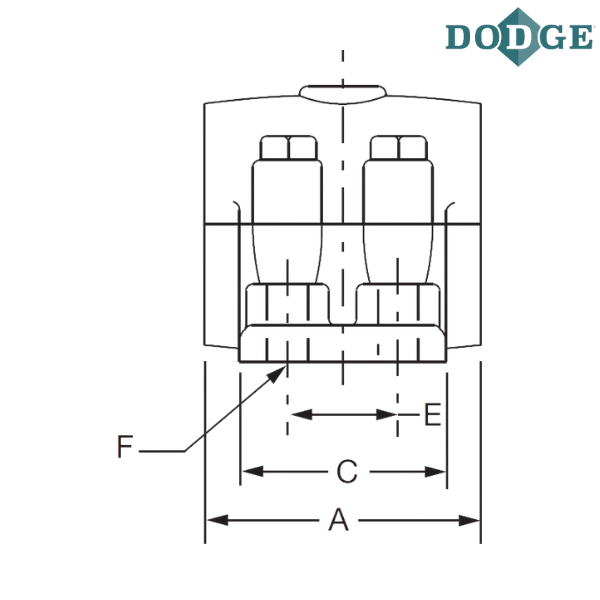

Length Through Bore (A) inch - 13
Overall Length (B) inch - 22
C (inch) - 9.5
Bolt to Bolt Minimum Distance (D min) inch - 17.375
Bolt to Bolt Maximum Distance (D max) inch - 18.625
E (inch) - 5.5
F-Bolt Diameter (inch) - 1.125
G (inch) - 1.875
H (inch) - 2.25
Overall Height (J) inch - 10.6875
Base to Center Height (M) inch - 6
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Number Required) - 2
Grease Cups (Size) - 4
Notes :
P2B - Pillow Block, 2 Bolt Base
BZR - Bronze Bushed Rigid
608 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
