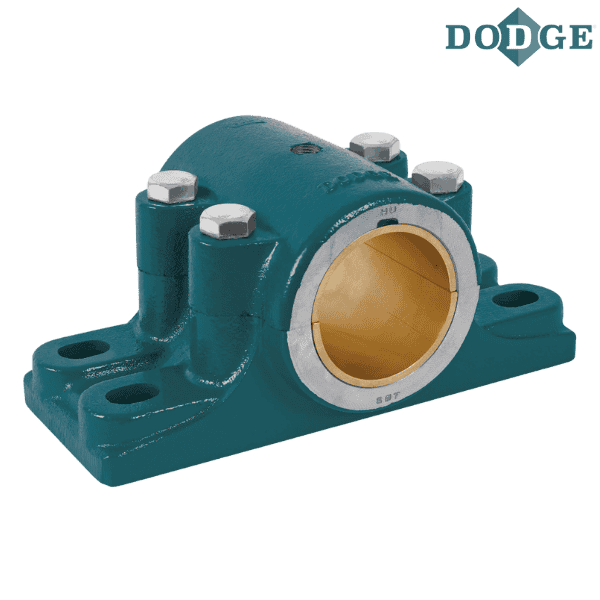

Brand - DODGE
Item Number - 005198 DODGE - P4B-BZR-700
Category - Sleeve Bearings - Bronze-Bushed Split Journal Bearing
Shaft Size (inch) - 7
Description - P4B-BZR-700
Weight (lbs) - 310

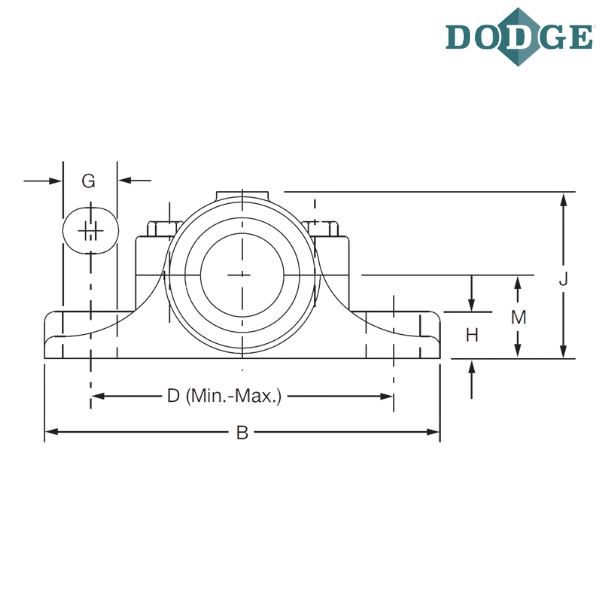

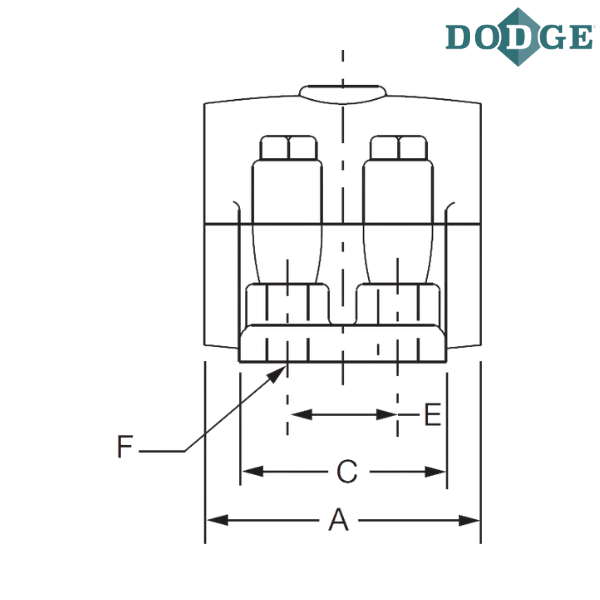

Length Through Bore (A) inch - 14
Overall Length (B) inch - 23
C (inch) - 10
Bolt to Bolt Minimum Distance (D min) inch - 18.375
Bolt to Bolt Maximum Distance (D max) inch - 19.625
E (inch) - 6
F-Bolt Diameter (inch) - 1.25
G (inch) - 2
H (inch) - 2.375
Overall Height (J) inch - 11.4375
Base to Center Height (M) inch - 6.5
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Number Required) - 2
Grease Cups (Size) - 4
Notes :
P2B - Pillow Block, 2 Bolt Base
BZR - Bronze Bushed Rigid
700 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
