Description
Brand - DODGE
Item Number - 005201 DODGE - P4B-BZR-800

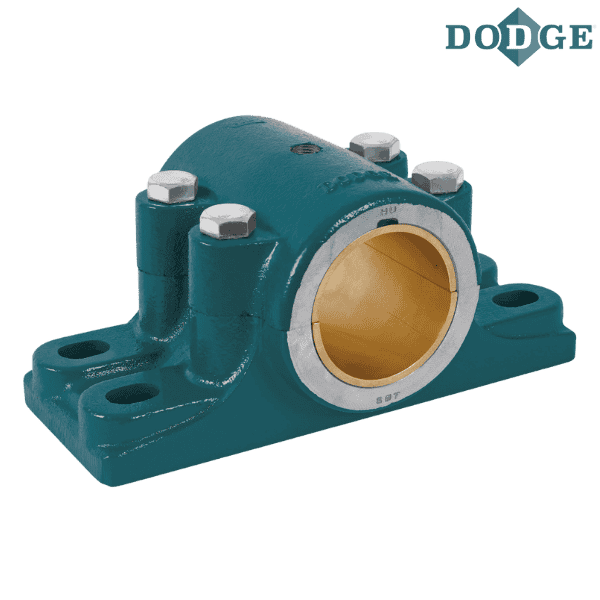

Category - Sleeve Bearings - Bronze-Bushed Split Journal Bearing
Shaft Size (inch) - 8
Description - P4B-BZR-800
Weight (lbs) - 430

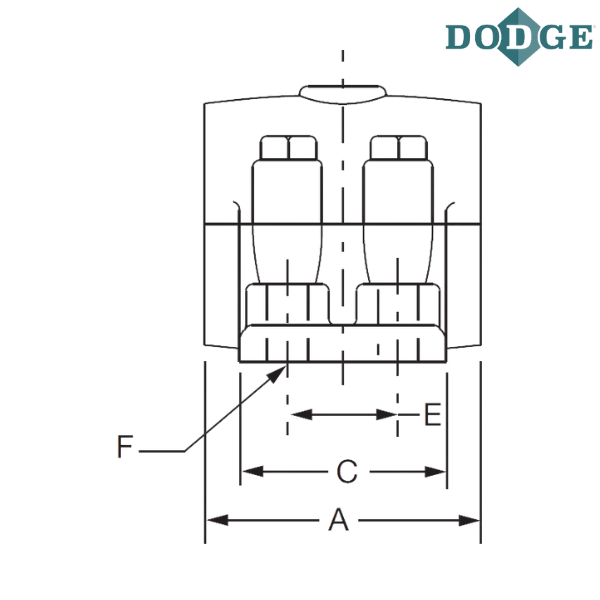

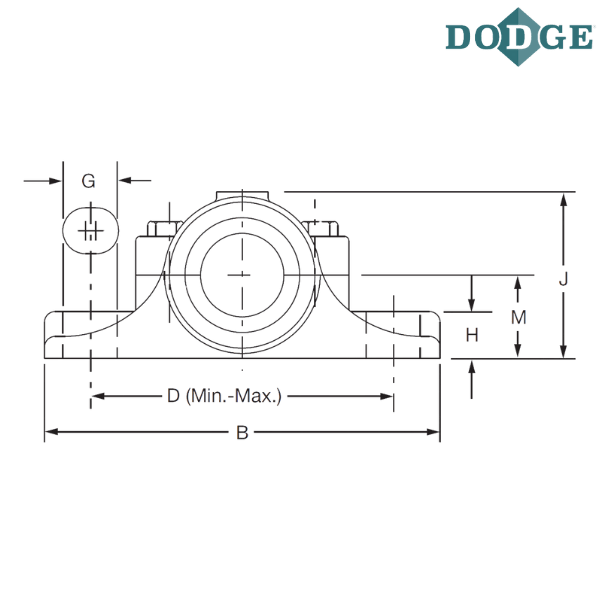

Length Through Bore (A) inch - 16
Overall Length (B) inch - 26
C (inch) - 11
Bolt to Bolt Minimum Distance (D min) inch - 20.75
Bolt to Bolt Maximum Distance (D max) inch - 22.25
E (inch) - 6.75
F-Bolt Diameter (inch) - 1.375
G (inch) - 2.25
H (inch) - 2.5
Overall Height (J) inch - 12.6875
Base to Center Height (M) inch - 7
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Number Required) - 2
Grease Cups (Size) - 4
Notes :
P2B - Pillow Block, 2 Bolt Base
BZR - Bronze Bushed Rigid
800 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
