Description
Brand - DODGE
Item Number - 006001 DODGE - P2B-BASP-008
Category - Sleeve Bearings - Split Babbitted Journal Bearings
Shaft Size (inch) - 0.5
Description - P2B-BASP-008
Weight (lbs) - 0.8

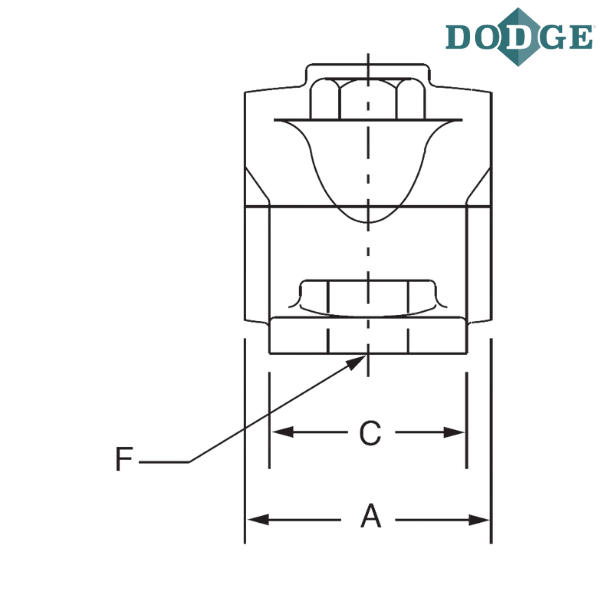

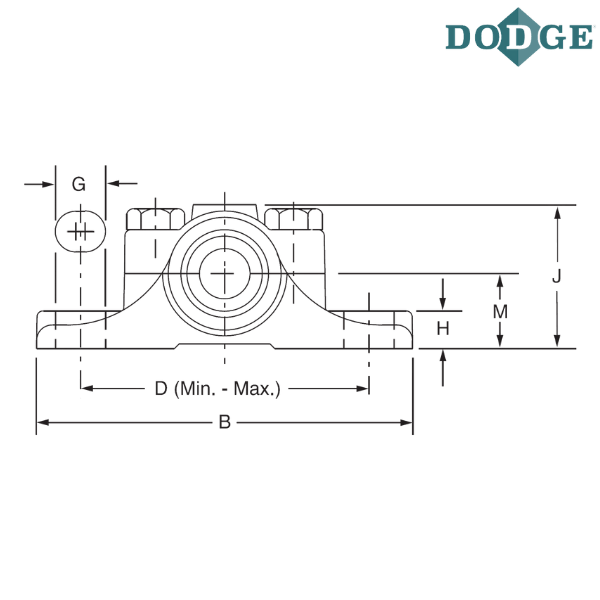

Length Through Bore (A) inch - 1.25
Overall Length (B) inch - 3.75
C (inch) - 1
Bolt to Bolt Minimum Distance (D min) inch - 2.75
Bolt to Bolt Maximum Distance (D max) inch - 3
F-Bolt Diameter (inch) - 0.3125
G (inch) - 0.5
H (inch) - 0.359375
Overall Height (J) inch - 1.46875
Base to Center Height (M) inch - 0.75
Grease Cups (Pipe Tap) inch - 0.125
Grease Cups (Number Required) - 1
Grease Cups (Size) - 0
Notes :
P2B - Pillow Block, 2 Bolt Base
BASP - Babbitted Split
008 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
