Description
Brand - DODGE

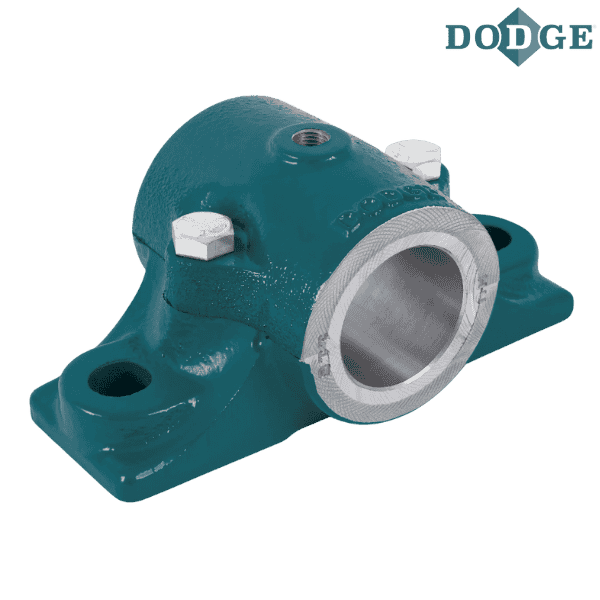

Item Number - 006004 DODGE - P2B-BASP-010
Category - Sleeve Bearings - Split Babbitted Journal Bearings
Shaft Size (inch) - 0.625
Description - P2B-BASP-010
Weight (lbs) - 1.1

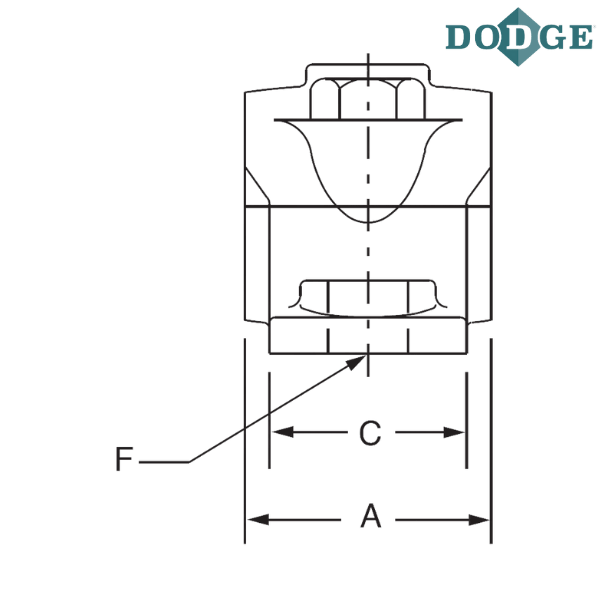

Length Through Bore (A) inch - 1.5

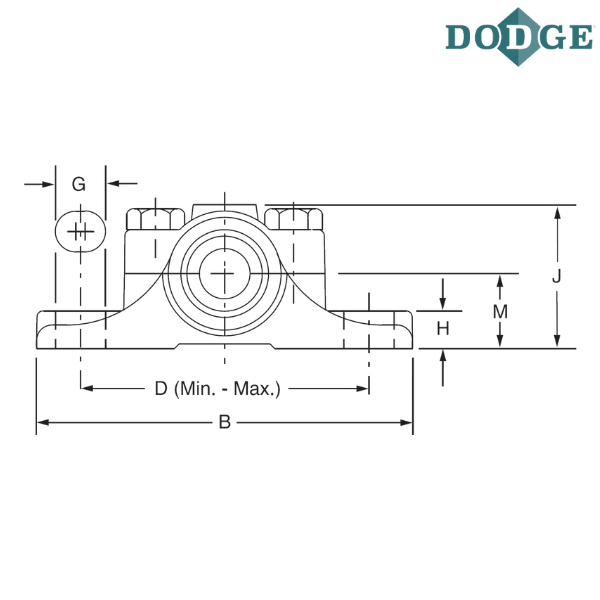

Overall Length (B) inch - 4.25
C (inch) - 1.125
Bolt to Bolt Minimum Distance (D min) inch - 3.125
Bolt to Bolt Maximum Distance (D max) inch - 3.375
F-Bolt Diameter (inch) - 0.3125
G (inch) - 0.5
H (inch) - 0.5
Overall Height (J) inch - 1.71875
Base to Center Height (M) inch - 0.875
Grease Cups (Pipe Tap) inch - 0.125
Grease Cups (Number Required) - 1
Grease Cups (Size) - 0
Notes :
P2B - Pillow Block, 2 Bolt Base
BASP - Babbitted Split
010 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
