Description
Brand - DODGE
Item Number - 006082 DODGE - P2B-BASP-315
Category - Sleeve Bearings - Split Babbitted Journal Bearings
Shaft Size (inch) - 3.9375
Description - P2B-BASP-315
Weight (lbs) - 53

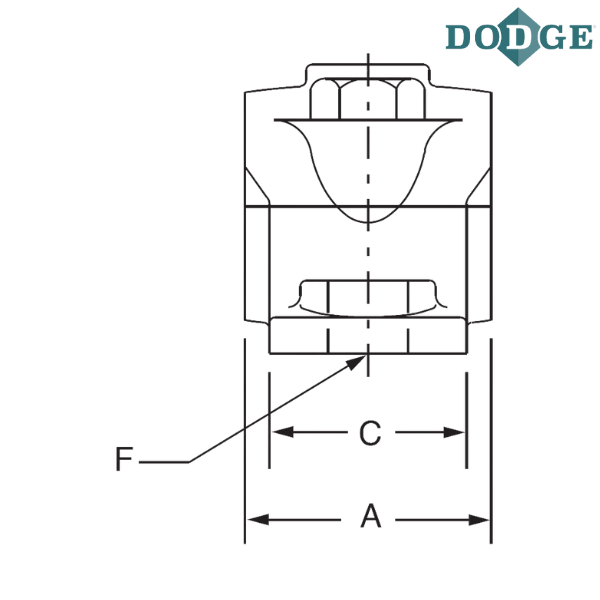

Length Through Bore (A) inch - 7.875

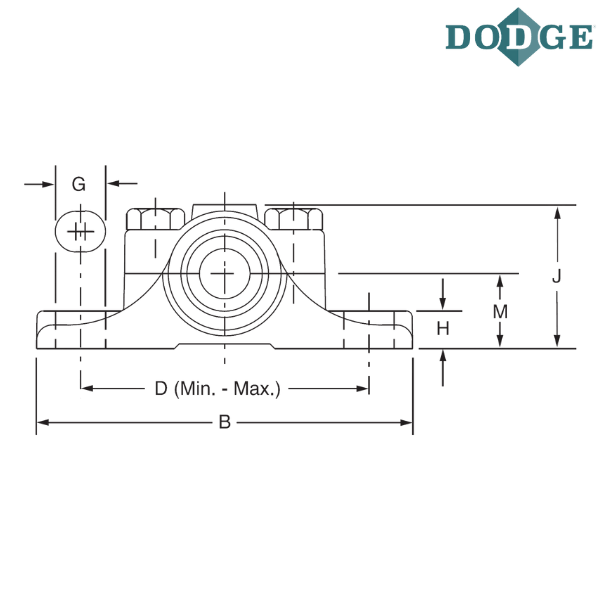

Overall Length (B) inch - 13.5
C (inch) - 4.5
Bolt to Bolt Minimum Distance (D min) inch - 10.09375
Bolt to Bolt Maximum Distance (D max) inch - 10.90625
F-Bolt Diameter (inch) - 1
G (inch) - 1.5
H (inch) - 1.625
Overall Height (J) inch - 6.4375
Base to Center Height (M) inch - 3.125
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Number Required) - 1
Grease Cups (Size) - 3
Notes :
P2B - Pillow Block, 2 Bolt Base
BASP - Babbitted Split
315 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
