Description
Brand - DODGE
Item Number - 006115 DODGE - P2B-BASO-104
Category - Sleeve Bearings - Solid Babbitted Journal Bearings
Shaft Size (inch) - 1.25
Description - P2B-BASO-104
Weight (lbs) - 2.5
Frame - LD-10

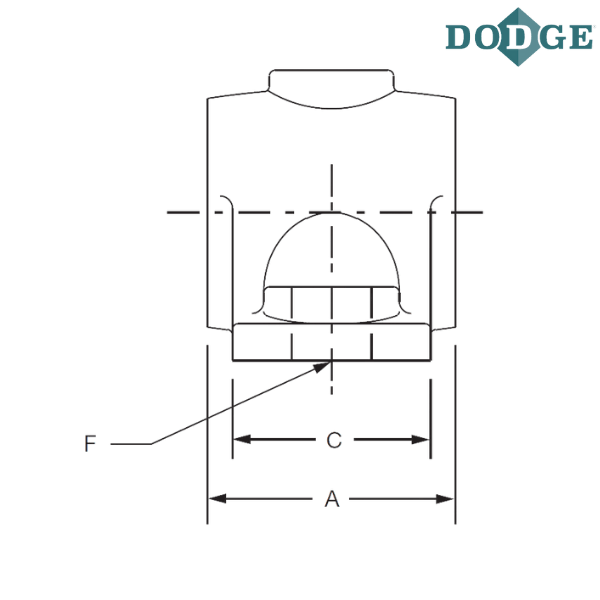

Length Through Bore (A) inch - 2.375
Overall Length (B) inch - 4.75
C (inch) - 1.75
Bolt to Bolt Minimum Distance (D min) inch - 3.375
Bolt to Bolt Maximum Distance (D max) inch - 3.625
F-Bolt Diameter (inch) - 0.4375
G (inch) - 0.65625
H (inch) - 0.6875
Overall Height (J) inch - 2.4375
Base to Center Height (M) inch - 1.25
Grease Cups (Pipe Tap) inch - 0.125
Grease Cups (Number Required) - 1
Grease Cups (Size) - 0
Notes :
P2B - Pillow Block, 2 Bolt Base
BASO - Babbitted Solid
104 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
