Description
Brand - DODGE
Item Number - 013905 DODGE - TPHU-130X24-TUFR
Category - Top Angle Heavy Duty Universal Take-Up Frame
Description - TPHU-130X24-TUFR
Possible Shaft Size (inch) - 2.5
Frame Size - TPHU130
Nominal Travel (inch) - 24
Weight (lbs) - 99

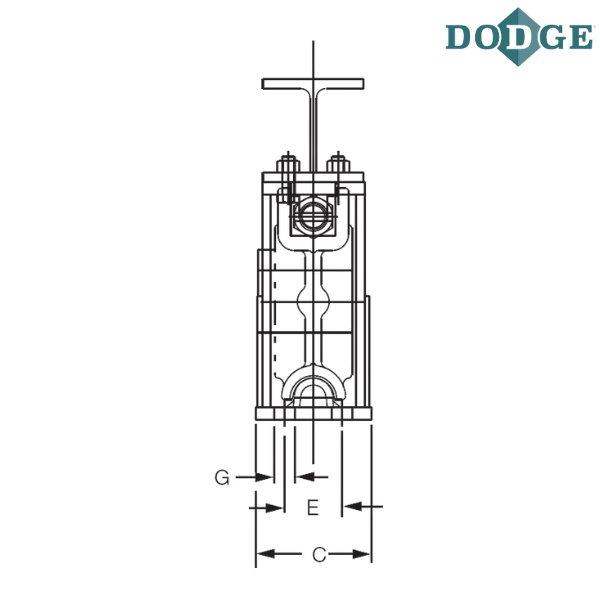

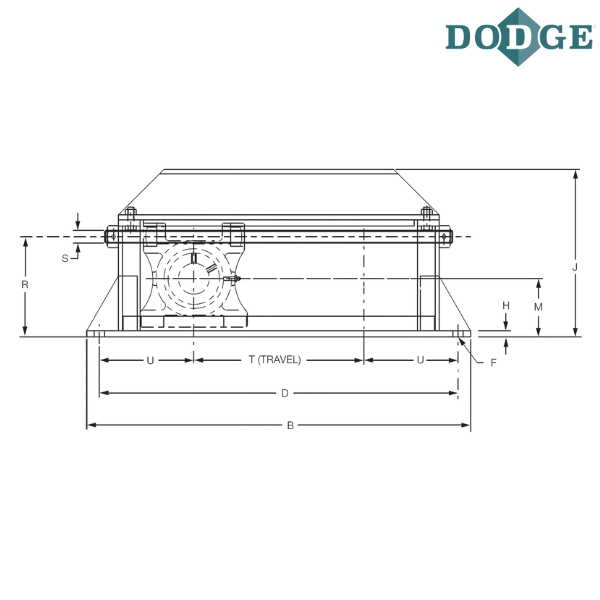

Overall Length (B) inch - 42.5
Base Width (C) inch - 4.5
Bolt Center-to-Center Length (D) inch - 40.5
F-Base Bolt Diameter (inch) - 0.75
G (inch) - 0.8125
H (inch) - 0.5
Overall Height (J) inch - 11.75
Base to Center Height (M) inch - 4.625
R (inch) - 7.953125
S Screw Diameter (S) inch - 1
Maximum Travel (T) inch - 25.5
U (inch) - 7.5
Notes :
TPHU - Top Angle Heavy Duty Universal Take-Up Frame
130 - Frame Size Designation
24 - Inches of Travel
TUFR - Take-Up Frame

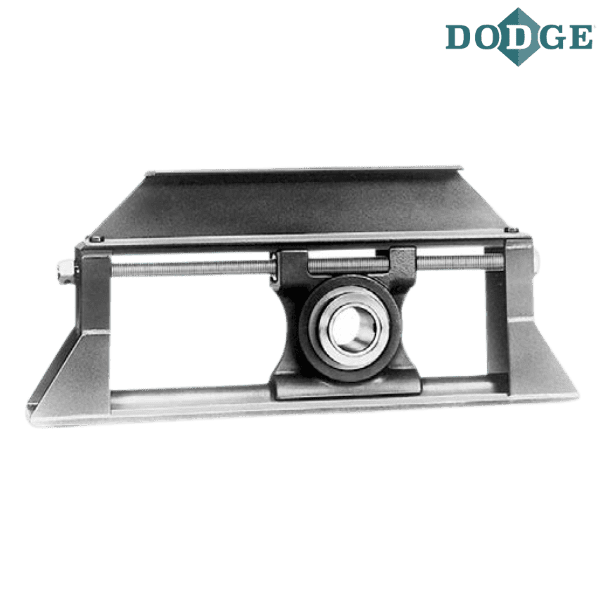

** Images are for representation purposes only
