019220 DODGE - CP-408X12-TUFR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 019220 DODGE - CP-408X12-TUFR
Category - Center Pull Wide Slot Take-Up Frame
Description - CP-408X12-TUFR
Frame Size - CP408
Take-Up Frame Travel (inch) - 12
Weight (lbs) - 61
Maximum Travel of S2000 and IMPERIAL (inch) - 14.15625
Maximum Travel of Type E and K (inch) - 14.09375

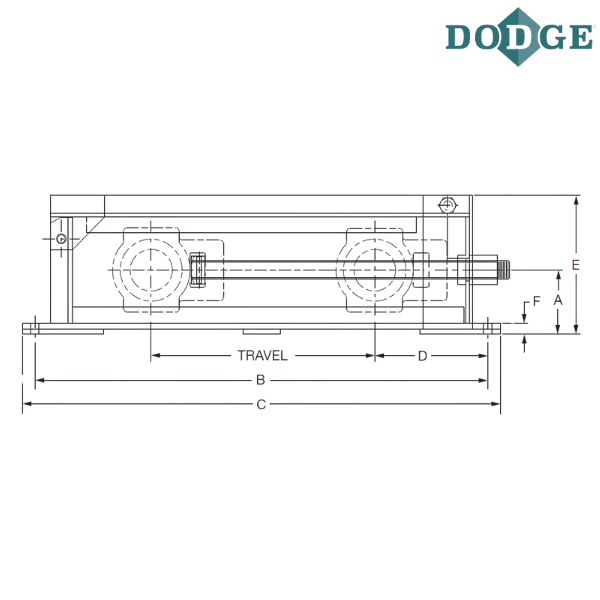

A (inch) - 4.4375
Bolt Center To Center Length (B) inch - 27 1/2
Overall Length (C) inch - 27.5
D of S2000 and IMPERIAL (inch) - 7.75
D of Type K and E (inch) - 7.75
Overall Height (E) inch - 9.25
F (inch) - 0.6875

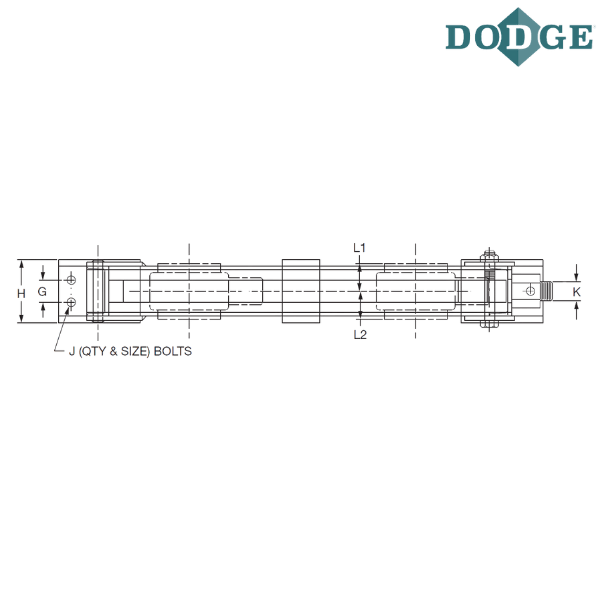

H (inch) - 4
Quantity (J) - 2
Size Diameter (J) inch - 0.625
K (inch) - 1-1/8-7NC
L1 (inch) - Available on Request
L2 (inch) - Available on Request

Notes :
CP - Center Pull Wide Slot Take-Up Frame
408 - Frame Size Designation
12 - Inches of Travel
TUFR - Take-Up Frame

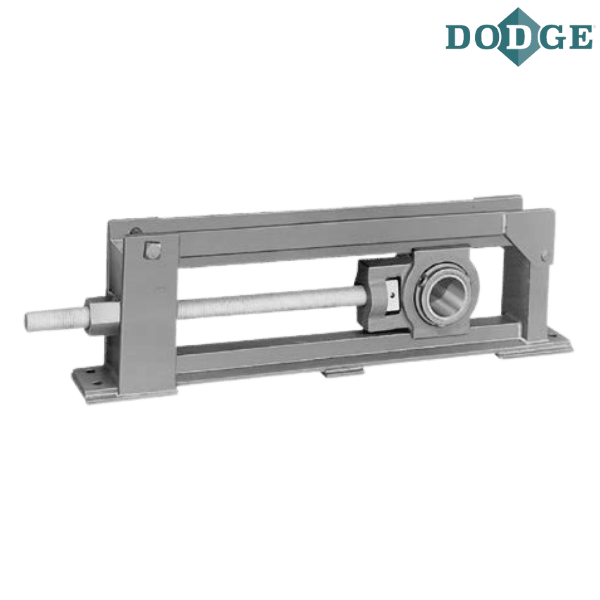

** Images are for representation purposes only
