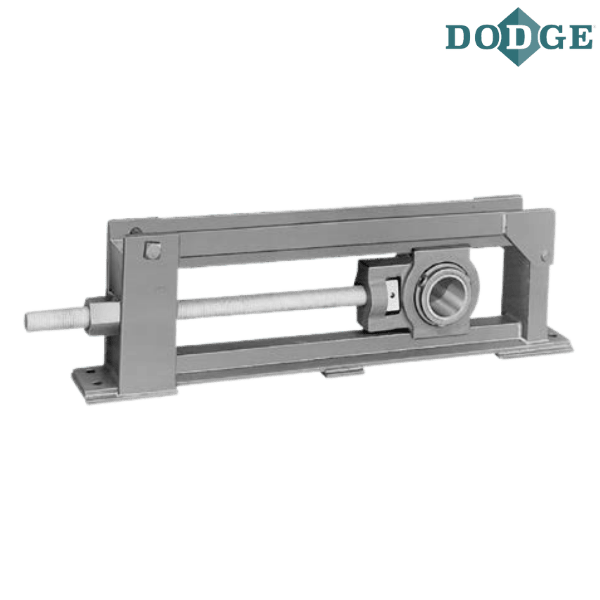

019270 DODGE - CP-908X12-TUFR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 019270 DODGE - CP-908X12-TUFR
Category - Center Pull Wide Slot Take-Up Frame
Description - CP-908X12-TUFR
Frame Size - CP908
Take-Up Frame Travel (inch) - 12
Weight (lbs) - 280
Maximum Travel of S2000 and IMPERIAL (inch) - 17.96875

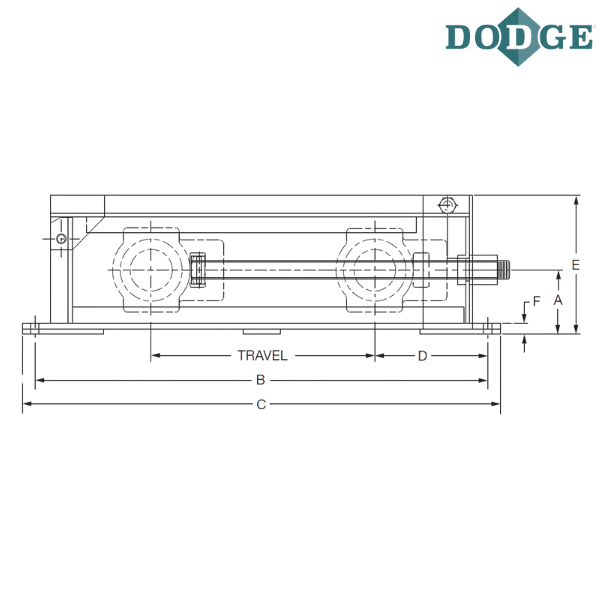

A (inch) - 7.5
Bolt Center To Center Length (B) inch - 40 3/4
Overall Length (C) inch - 40.75
D of S2000 and IMPERIAL (inch) - 13.5
Overall Height (E) inch - 16.0625
F (inch) - 1.25

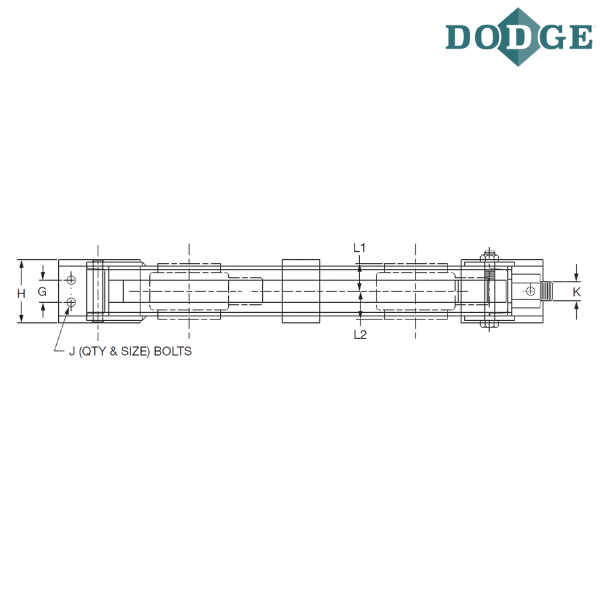

Bolt Center-to-Center Width (G) inch - 5
H (inch) - 10
Quantity (J) - 4
Size Diameter (J) inch - 1.125
K (inch) - 2-4-1/2-NC
L1 (inch) - Available on Request
L2 (inch) - Available on Request

Notes :
CP - Center Pull Wide Slot Take-Up Frame
908 - Frame Size Designation
12 - Inches of Travel
TUFR - Take-Up Frame

** Images are for representation purposes only
