Description
Brand - DODGE

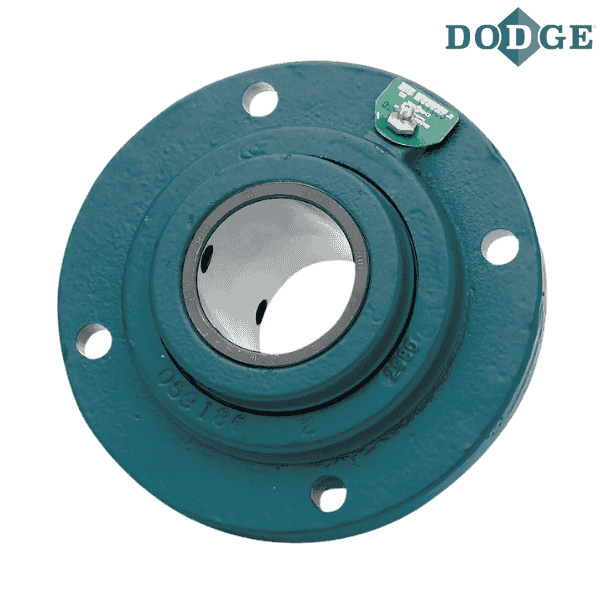

Item Number - 023124 DODGE - FC-E-108R
Category - Type E-Xtra Piloted Flange (Gray Iron)
Shaft Size (inch) - 1.5
Part Name - FC-E-108R
Approximate Weight (lbs) - 10

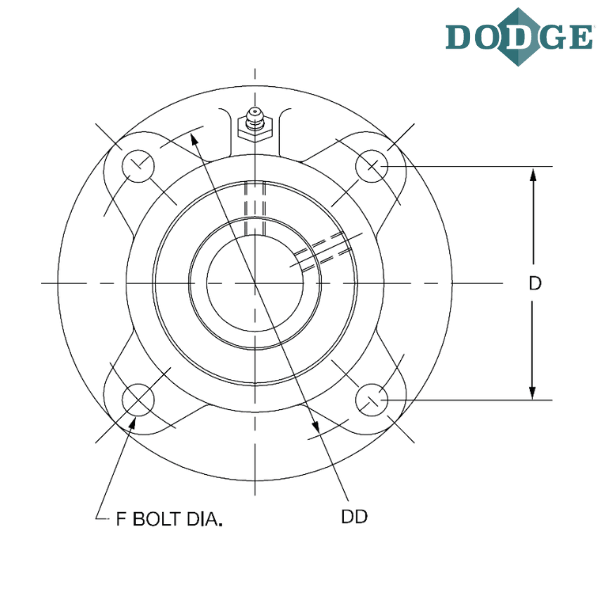

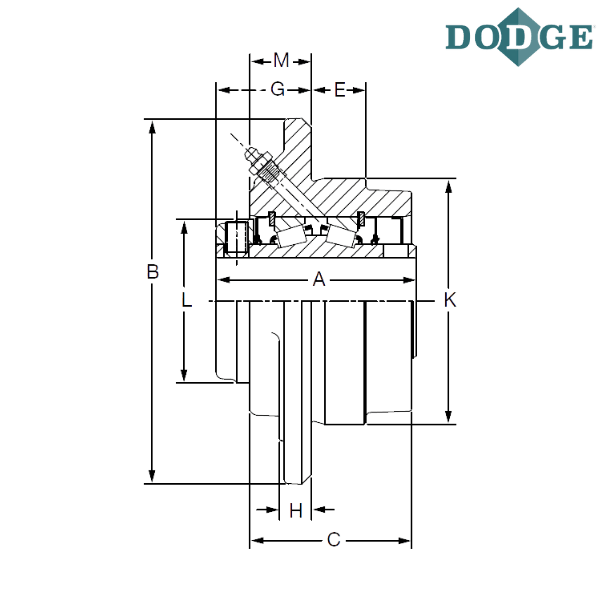

Length Through Bore (A) inch - 3.38
Overall Length (B) inch - 6.13
C (inch) - 2.39
Bolt Center to Center Length (D) inch - 3.62
Bolt Circle (ØDD) inch - 5.13
Pilot Depth (E) inch - 1.06
F-Bolt Diameter (inch) - 0.4375
G (inch) - 1.56
H (inch) - 0.5
Pilot Diameter (K) inch - 4.25 (+.000 -.002)
L (inch) - 3.19
M (inch) - 1.03
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Piloted Flange Bearing (Flanged Cartridge)
E - Type E
R - “XTS” Triple Lip Seal
** Images are for representation purposes only
