Description
Brand - DODGE
Item Number - 023140 DODGE - FC-E-304R
Category - Type E-Xtra Piloted Flange (Gray Iron)
Shaft Size (inch) - 3.25
Part Name - FC-E-304R
Approximate Weight (lbs) - 44

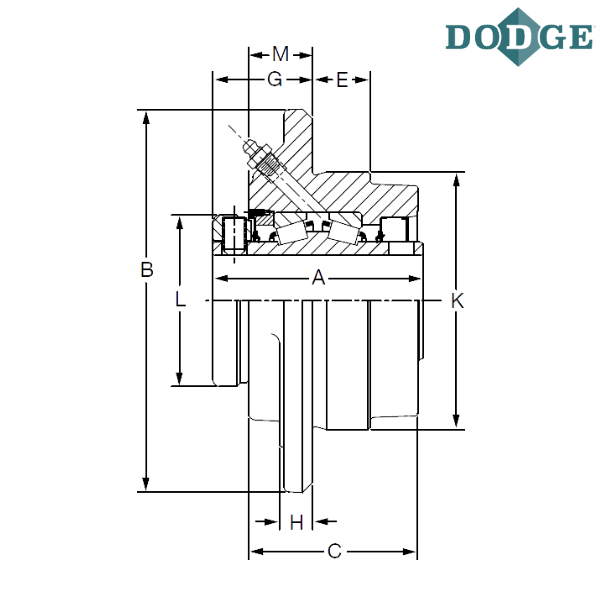

Length Through Bore (A) inch - 5
Overall Length (B) inch - 10.25
C (inch) - 4.19

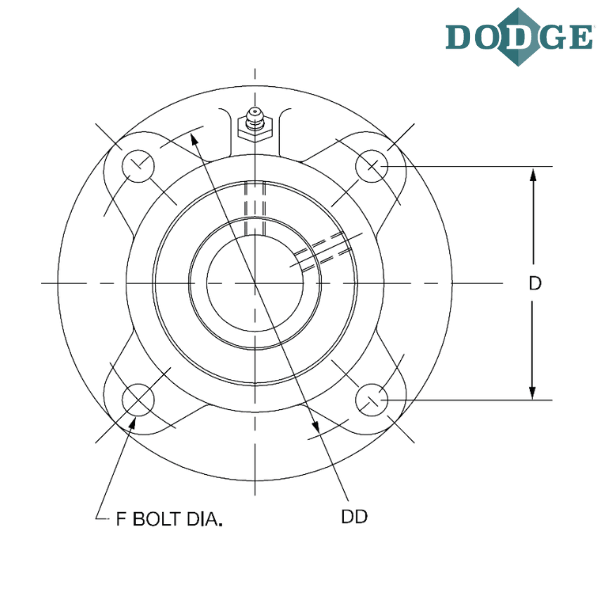

Bolt Center to Center Length (D) inch - 6.1
Bolt Circle (ØDD) inch - 8.63
Pilot Depth (E) inch - 1.25
F-Bolt Diameter (inch) - 0.75
G (inch) - 2.44
H (inch) - 0.94
Pilot Diameter (K) inch - 7.38 (+.000 -.002)
L (inch) - 5.5
M (inch) - 1.69
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FC - Piloted Flange Bearing (Flanged Cartridge)
E - Type E
R - “XTS” Triple Lip Seal

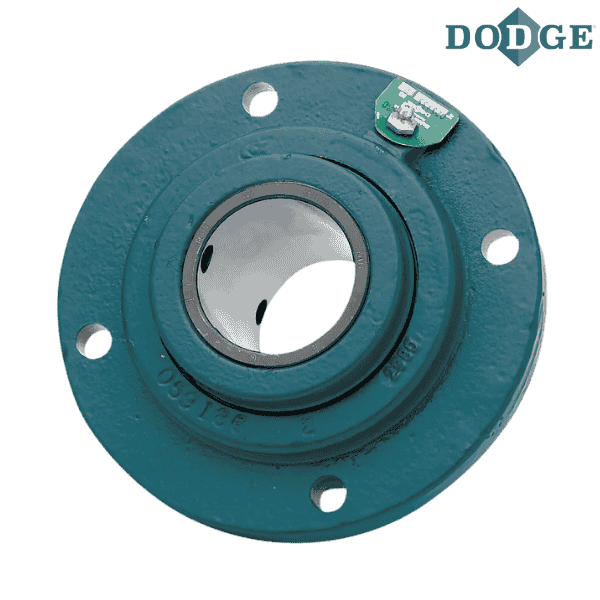

** Images are for representation purposes only
