Description
Brand - DODGE
Item Number - 023151 DODGE - TP-E-115R
Category - Type E-Xtra TP Take-Up Bearing - Inch
Shaft Size (inch) - 1.9375
Part Name - TP-E-115R
Approximate Weight (lbs) - 14
Frame Size Reference - TP10

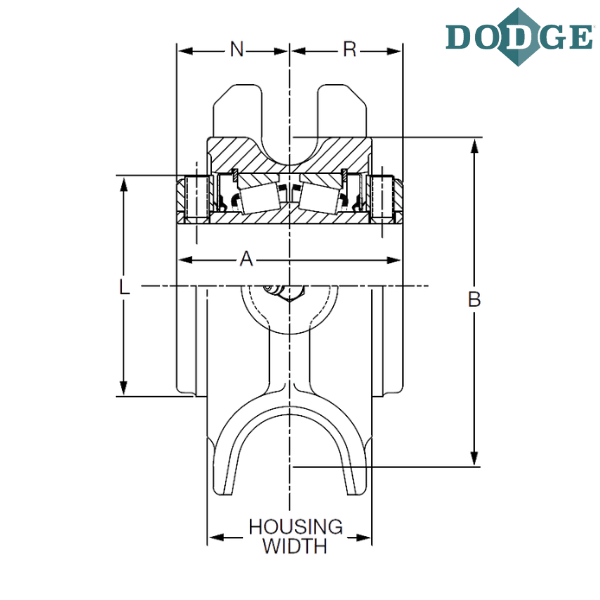

Length Through Bore (A) inch - 3.5
B (inch) - 5.19
C (inch) - 6.38
L (inch) - 3.44
N (inch) - 1.75
Housing Width (inch) - 2.56

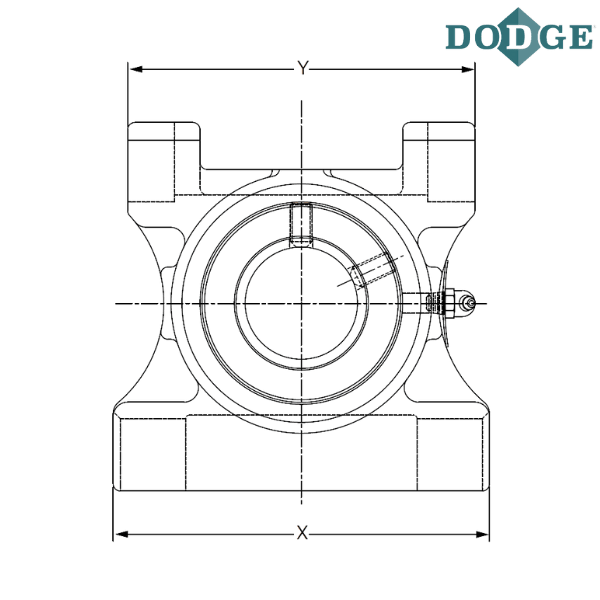

X (inch) - 6.5
Y (inch) - 6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TP - Top Angle Take-Up Bearing, Cast Iron
E - Type E
R - “XTS” Triple Lip Seal

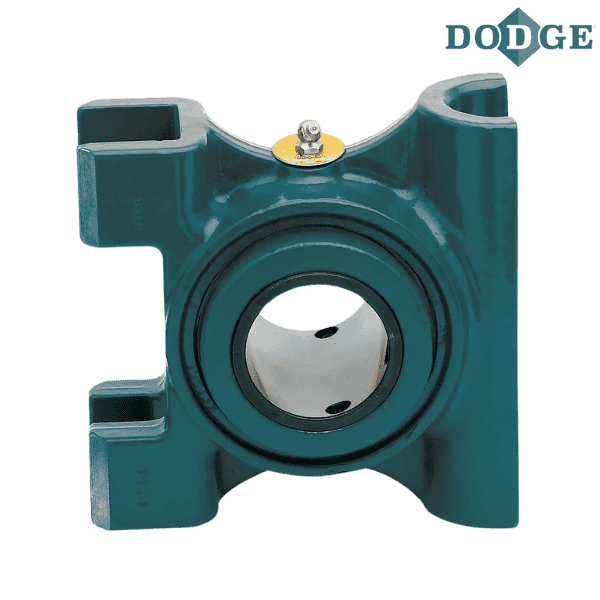

** Images are for representation purposes only
