Description
Brand - DODGE
Item Number - 023166 DODGE - TP-E-400R
Category - Type E-Xtra TP Take-Up Bearing - Inch
Shaft Size (inch) - 4
Part Name - TP-E-400R
Approximate Weight (lbs) - 62
Frame Size Reference - TP60

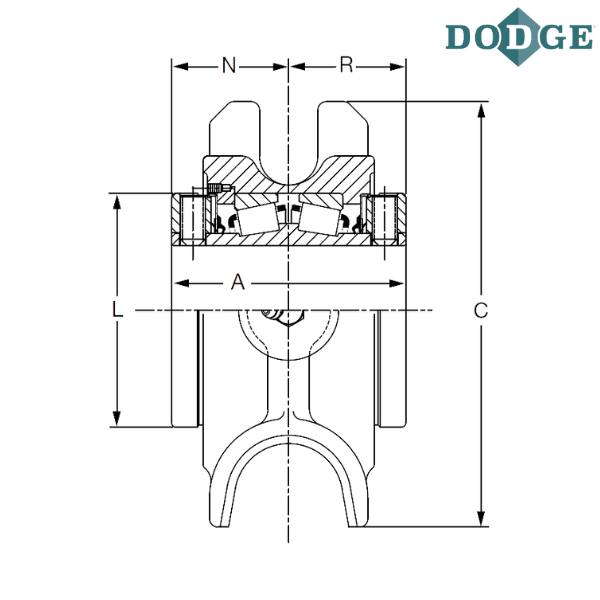

Length Through Bore (A) inch - 6.25
B (inch) - 9.06
C (inch) - 11
L (inch) - 6
N (inch) - 3.13
Housing Width (inch) - 4.75

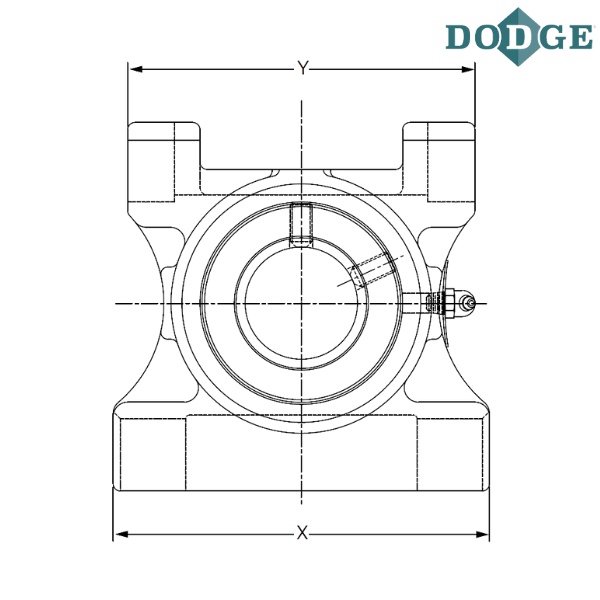

X (inch) - 11
Y (inch) - 10.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TP - Top Angle Take-Up Bearing, Cast Iron
E - Type E
R - “XTS” Triple Lip Seal

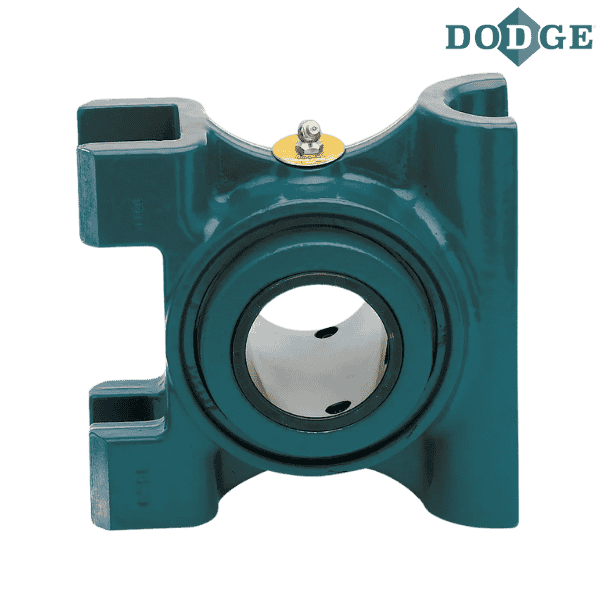

** Images are for representation purposes only
