Description
Brand - DODGE
Item Number - 023449 DODGE - F4B-DI-415R
Category - Double-Interlock Flange Bearing - Inch (DUCTILE Iron Non-Expansion)
Shaft Size (inch) - 4.9375 *
Part Name - F4B-DI-415R
Approximate Weight of Pillow Block (lbs) - 220

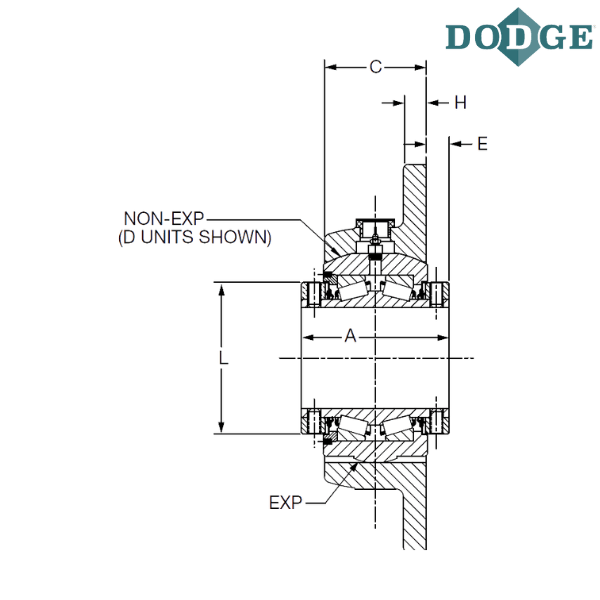

Length Through Bore (A) inch - 7.25

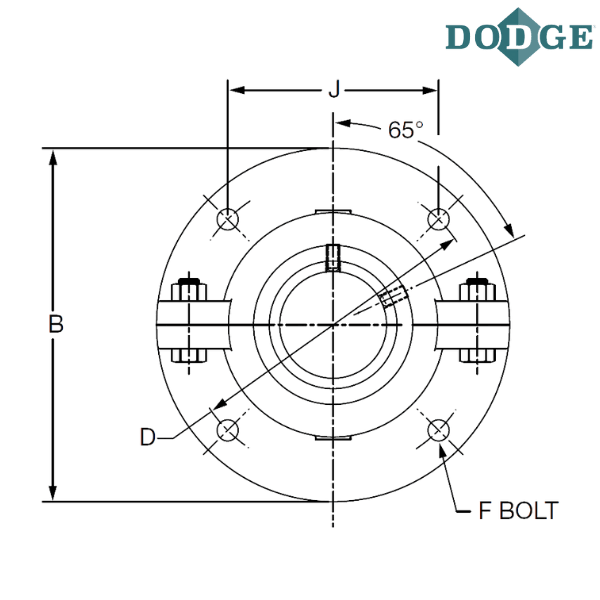

B (inch) - 19
C (inch) - 5
D (inch) - 16
E (inch) - 1.13
F-Bolt Diameter (inch) - 1.125
H (inch) - 1.13
J (inch) - 11.31
L (inch) - 7.45
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - Flange Bearing 4-Bolt, Cast Iron
DI - DOUBLE-INTERLOCK
R - “XTS” Triple Lip Seal
* 4-7/16” - 5” Housings Are Made Of Cast Iron

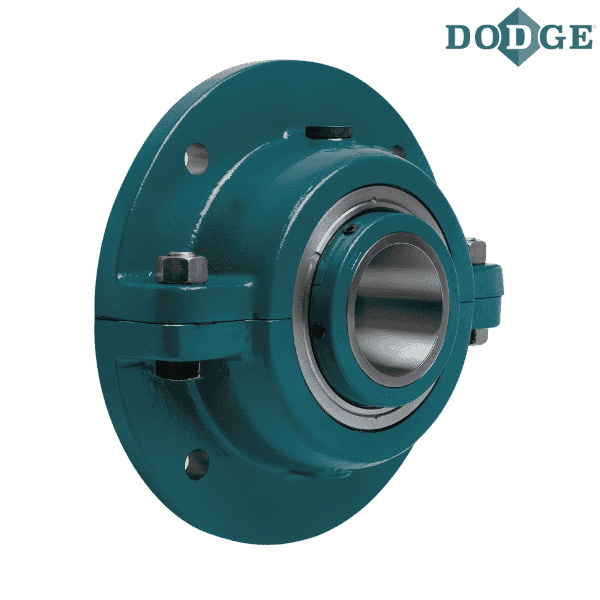

** Images are for representation purposes only
