Description
Brand - DODGE
Item Number - 023510 DODGE - S1U-DI-107R
Category - Double-Interlock S-1 Units - Gray Iron
Shaft Size (inch) - 1.4375
Part Name - S1U-DI-107R
Approximate Weight (lbs) - 5

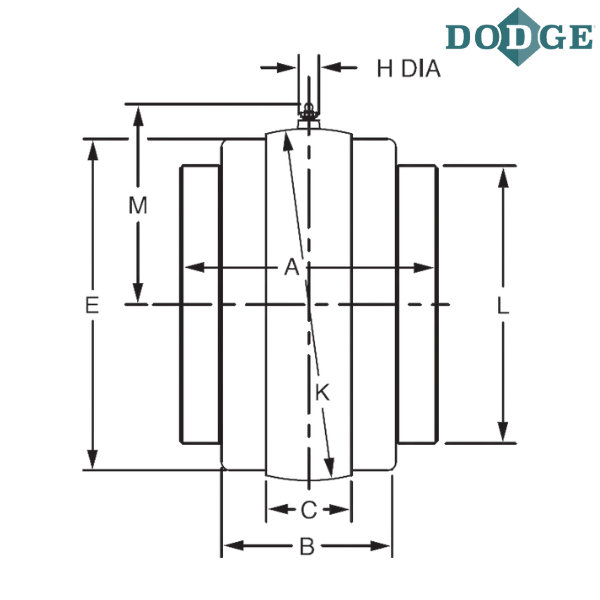

Length Through Bore (A) inch - 3
B (inch) - 2.06
C (inch) - 1.16
E (Machine Side) inch - 3.25
E (Cast Side) inch - 3.31
H (inch) - 0.6875
K (inch) - 3.625 (+.000 to .001”)
L (inch) - 2.75
M (inch) - 2.64
Notes :
S1U - S-1, Unit Cast Iron
DI - DOUBLE-INTERLOCK
R - “XTS” Triple Lip Seal
Pillow Block: S-1 units are used in expansion and non-expansion pillow block housings.
Flange: S-1 units are used in expansion and non-expansion flange housings for 1-3/16" - 4".

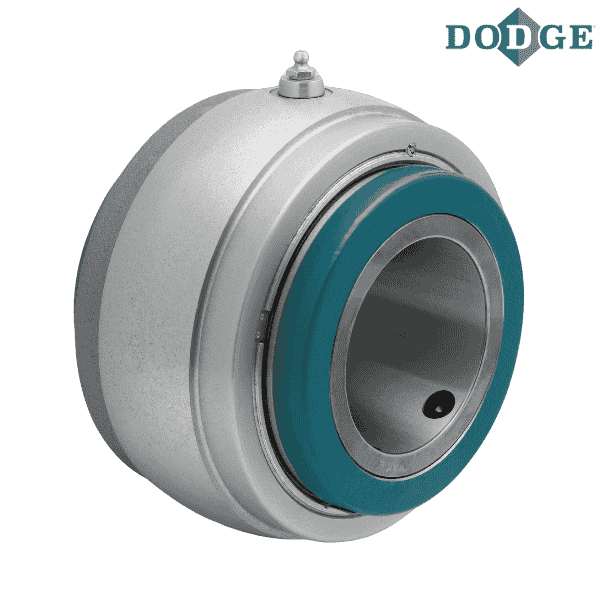

** Images are for representation purposes only
