Description
Brand - DODGE
Item Number - 023535 DODGE - S1U-DI-500R
Category - Double-Interlock S-1 Units - Gray Iron
Shaft Size (inch) - 5
Part Name - S1U-DI-500R
Approximate Weight (lbs) - 82

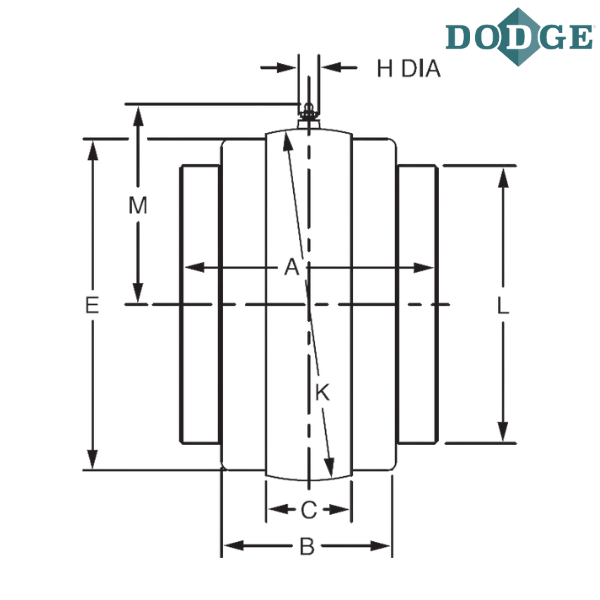

Length Through Bore (A) inch - 7.25
B (inch) - 5.13
C (inch) - 2.88
E (Machine Side) inch - 9.56
E (Cast Side) inch - 9.63
K (inch) - 10.184 (±.0005”)
L (inch) - 7.45
M (inch) - 6.26
Notes :
S1U - S-1, Unit Cast Iron
DI - DOUBLE-INTERLOCK
R - “XTS” Triple Lip Seal
Pillow Block: S-1 units are used in expansion and non-expansion pillow block housings.
Flange: S-1 units are used in expansion and non-expansion flange housings for 1-3/16" - 4".

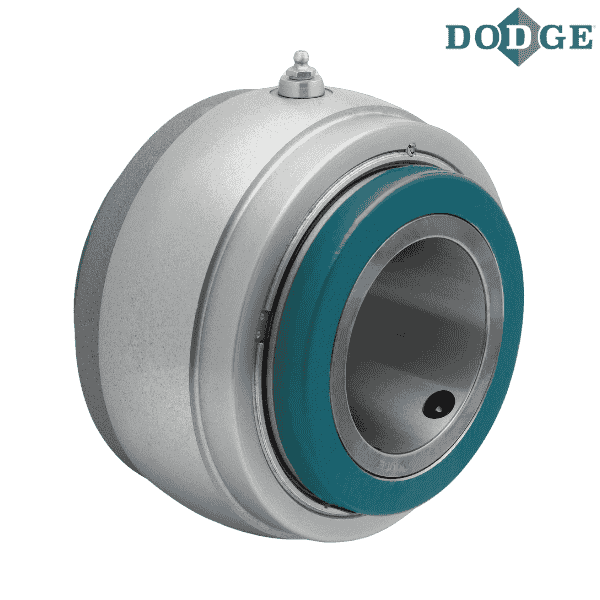

** Images are for representation purposes only
