Description

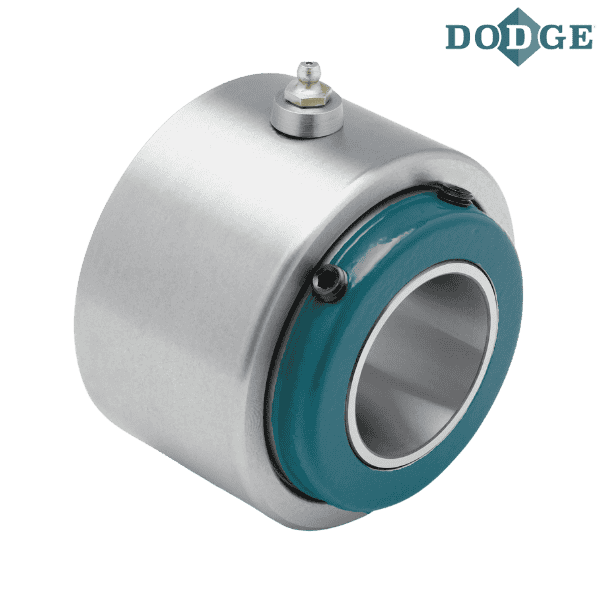

Brand - DODGE
Item Number - 023543 DODGE - B1U-DI-103R
Category - Double-Interlock B-1 Units - Gray Iron
Shaft Size (inch) - 1.1875
Part Name - B1U-DI-103R
Approximate Weight (lbs) - 3

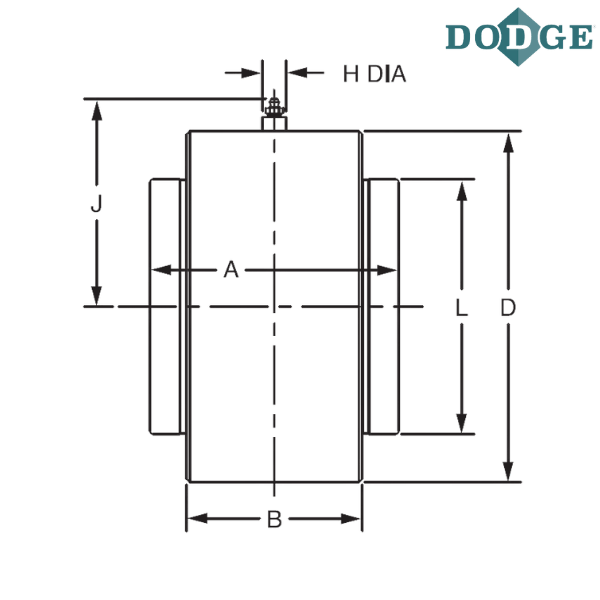

Length Through Bore (A) inch - 2.75
B (inch) - 1.88
D (inch) - 3.000 (+.000 to -.002”)
J (inch) - 2.42
L (inch) - 2.25
Notes :
B1U - B1 Unit, Cast Iron
DI - DOUBLE-INTERLOCK
R - “XTS” Triple Lip Seal
B-1 units are used in custom housings or machines with bored holes, functioning as non-expansion or expansion bearings with proper axial locating.
They handle slight misalignment but require additional shaft support. For rotating wheels, Type C B-1 units are recommended, or consult the factory.
** Images are for representation purposes only
